- MFR #
- GFNT1-HGE
- Zoro #
- G604392898
- UPC #
- 07847772504
- Country of Origin
- China

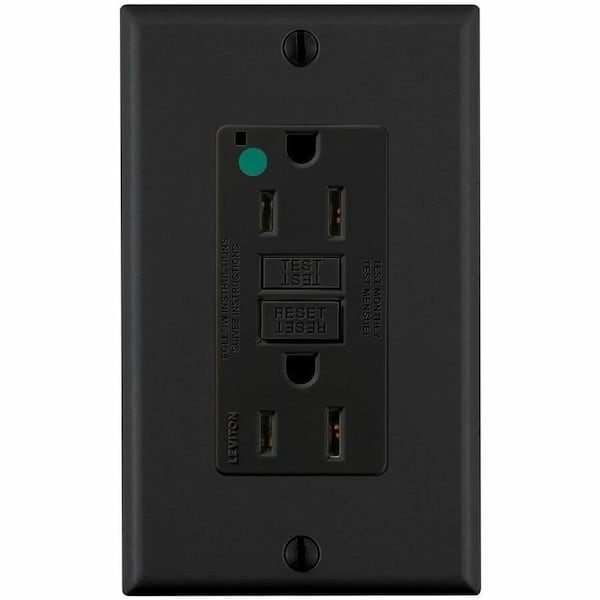

- Item
- GFI Receptacle
- Connection Orientation
- Straight
- Cover Type
- No Cover
- Current Rating
- 15 A
- Phase
- Single
- GFCI
- Yes
- Grounding
- Grounded
- Housing Color
- Black
- Number of Outlets
- 2
- Housing Material
- Polycarbonate
- NEMA Enclosure Rating
- Not Rated
- NEMA Receptacle Configuration
- 5-15R
- Number of Poles
- 2
- Number of Wires
- 3
- Polarized
- Yes
- Standards
- ANSI C73, CSA C22.2 No. 42 and 144, CSA Certified, Federal Specification W-C-596, NEMA WD-1 and WD-6, NOM-ANCE, UL 498, UL 943, UL Listed
- Item - Plugs and Receptacles
- GFCI Receptacle
- HP
- 1 hp
- Color
- Black
- Special Features
- Cold Impact Resistance, UV Stabilized Plastics
- Surge Suppression
- Yes
- Weather Resistant - Plugs and Receptacles
- No
- Application Environment
- Hospital Grade
- Power Indicator
- Yes
- Outlet Type - Plugs and Receptacles
- Duplex
- Wiring Method
- Back/Side
- Wiring Method - Plugs and Receptacles
- Back and Side
- Tamper Resistant
- No
- Voltage
- 125 VAC
- Self-Testing
- Yes
- Amps - Plugs and Receptacles
- 15 A
- Color - Plugs and Receptacles
- Black
- NEMA Receptacle Configuration - Plugs and Receptacles
- 5-15R
- Voltage - Plugs and Receptacles
- 125V
- Visual Indicator Lights
- Power Connected
- Includes
- Strap Material
- Minimum Operating Temperature
- -31 Degrees F
- Surge Protection
- Yes
- Wire Connection Type
- Screw Terminals
- Voltage Rating
- 125V AC
- UL 94 Flammability Rating
- V-0
- Maximum Operating Temperature
- 150.8 Degrees F
- Mount Type
- Flush
- Horsepower Rating
- 1 hp
- Features
- Built-In Night Light
- Self Testing
- Yes
- Includes Mounting Hardware
- Yes
- Contact Material
- Brass
- Receptacle Type
- Decorator Duplex
- Grade
- Hospital Grade Fed. Spec.
- Operating Temperature
- -35C to +66C
- Certification/Listing
- UL, CSA, NOM-ANCE
- At Rated Voltage
- 1 HP
- Pole
- 2
- Feature
- Wallplate Included|Power Indication
- Terminal Screws
- Plated Steel
- Flammability
- Rated V-0 per UL 94
- Wire
- 3
- Strap Material
- Galvanized Steel
- Device Type
- Duplex Receptacle Outlet
- Terminal Accom.
- 14-10 AWG solid or stranded
- NEMA
- WD-1 & WD-6
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- Short Circuit Current Rating
- 10kA
- Screw Terminal Torque
- 14-18 in-lbs
- Body Material
- Polycarbonate
- Terminal Clamp
- Brass
- Grounding Screw
- Plated Steel
- Amperage
- 15 A & 20 A Feed-Through
- Applicable Standards
- UL 943, UL 498, CSA C22.2 No. 42 & 144, FedSpec W-C-596
- Ground Clips
- Brass
- ANSI
- C-73
- Termination
- Back or Side Wire
- Function
- GFCI
- Face Material
- PBT
- Line Contacts
- Brass
- Status Indicator Lights
- Power Connected
- Flange Type
- Non-Flanged
- IP Rating
- Not Rated
- AFCI
- No
- Number of Wall Plates Included
- 0
- Shrouded
- No
- Number of Gangs
- 1
