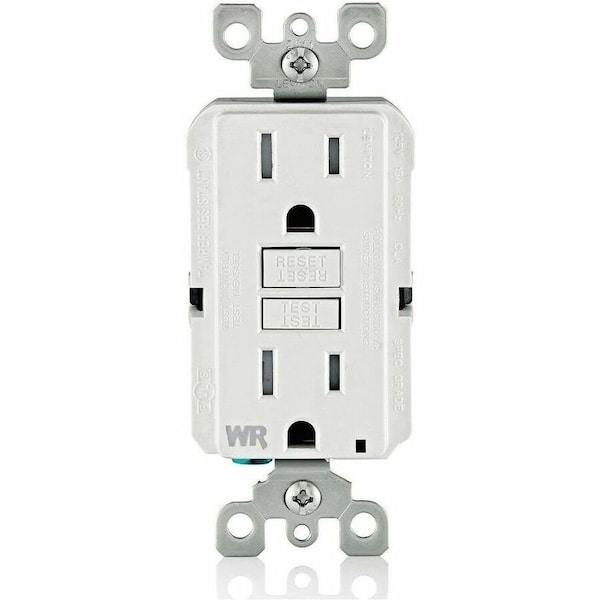

Leviton GFIRcptcl, 15A, 125VAC, Wht, Polycarbonate GFWT1-W - main

GFIRcptcl, 15A, 125VAC, Wht, Polycarbonate

  • Mfr # GFWT1-W

  • Zoro # G616047564

product price:  $24.25
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
GFCI
Yes
Grounding
Grounded
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
GFWT1-W
Zoro #
G616047564
UPC #
07847770923
Country of Origin
China

Dimensions

Face Plate Width
1.3 in
Mount Hole Center-to-Center Height
3.8 in
Minimum Wire Size
14 AWG
Overall Depth
1 in
Face Plate Height
2.7 in
Maximum Wire Size
10 AWG

Details

Item
GFI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
GFCI
Yes
Grounding
Grounded
Housing Color
White
Housing Material
Polycarbonate
NEMA Receptacle Configuration
5-15R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
ANSI, CSA Certified, Federal Specification, MIL-SPEC, NOM Certified, RoHS Compliant, UL Listed
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Voltage - Plugs and Receptacles
125V
Number of Outlets
2
Voltage Rating
125V AC
Surge Protection
Yes
Color - Plugs and Receptacles
White
Wiring Method - Plugs and Receptacles
Back and Side
Amps - Plugs and Receptacles
15 A
Surge Suppression
Yes
Market
Commercial, Residential
Reset Type
Automatic
Self Testing
Yes
HP
1 hp
Tamper Resistant
Yes
Contact Material
Brass
Reverse Service
Yes
Additional Electrical Protections
GFCI & Surge Protection
Includes Mounting Hardware
Yes
Weather Resistant - Plugs and Receptacles
Yes
Hub Type
Feed Through
Number of Poles & Wires
2 Pole / 3 Wire
Item - Plugs and Receptacles
GFCI Receptacle
For Location
Outdoor
Key Resistance Properties
Tamper & Weather Resistant, Tamper Resistant, Weather Resistant
Outlet Type - Plugs and Receptacles
Standard Duplex
Visual Indicator Lights
Power Connected
Minimum Operating Temperature
-31 Degrees F
Phase
Single
Mounting Type - Plugs and Receptacles
Flush
Special Features
Auto Adapts and Shifts, Auto-Monitoring, Continuous Ground Fault Protection, Over-Voltage Resistant, Patented Lockout Action Prevents Reset, Standard Brass Self-Grounding Clip
Power Indicator
Yes
Wire Connection Types
Screw Terminals
Wire Connection Type
Screw Terminals
Application Environment
Commercial
Resistance Properties
Impact Resistant, Tamper Resistant, Weather Resistant
NEMA Configuration
5-15
Wiring Method
Back, Side
Horsepower Rating
1 hp
Grade
Federal Specification
Additional Electrical Protection
GFCI, Surge Protection
Primary Resistance Properties
Tamper Resistant - Tamper Resistant - 15 A, Tamper Resistant - Weather Resistant - 15 A, Weather Resistant - Impact Resistant - 15 A, Weather Resistant - Tamper Resistant - 15 A, Weather Resistant - Weather Resistant - 15 A
Receptacle Type
Decorator Duplex
Maximum Operating Temperature
150.8 Degrees F
Mount Type
Flush
Self-Testing
Yes

Description

GFI Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI Yes, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex
