Shop LEVITON

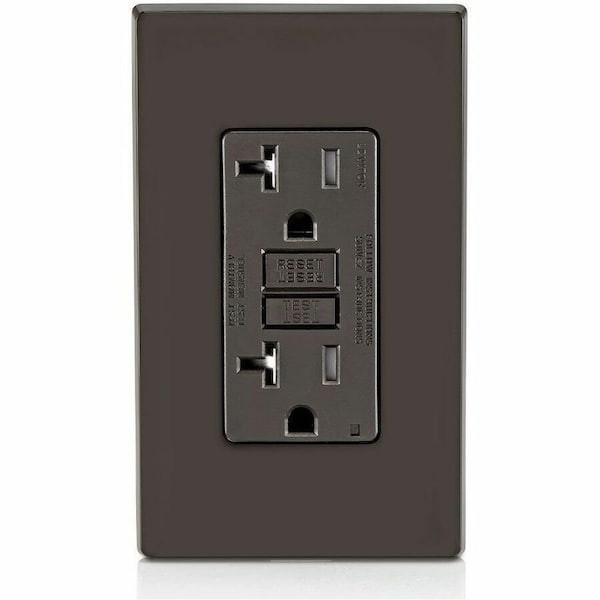

GFIRcptcl, 20A, 125VAC, Brn, Polycarbonate

  • Mfr # GFTR2

  • Zoro # G704392811

product price:
$
28.65
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
Phase
Single
GFCI
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
GFTR2
Zoro #
G704392811
UPC #
07847749729
Country of Origin
China

Dimensions

Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Overall Depth
1 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Height
2.7 in
Face Plate Width
1.3 in

Details

Item
GFI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
Phase
Single
GFCI
Yes
Grounding
Grounded
Housing Color
Brown
Number of Outlets
2
Housing Material
Polycarbonate
NEMA Receptacle Configuration
5-20R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
ANSI, CSA Certified, Federal Specification, MIL-SPEC, NOM Certified, RoHS Compliant, UL Listed
Tamper Resistant
Yes
Mounting Type - Plugs and Receptacles
Flush
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Special Features
Auto Adapts and Shifts, Auto-Monitoring, Continuous Ground Fault Protection, Over-Voltage Resistant, Patented Lockout Action Prevents Reset, Standard Brass Self-Grounding Clip
Color - Plugs and Receptacles
Brown
Voltage - Plugs and Receptacles
125V
Wiring Method - Plugs and Receptacles
Back and Side
Self-Testing
Yes
Item - Plugs and Receptacles
GFCI Receptacle
Surge Suppression
Yes
Application Environment
Commercial
Amps - Plugs and Receptacles
20 A
Wiring Method
Back/Side
Weather Resistant - Plugs and Receptacles
No
Reset Type
Automatic
Outlet Type - Plugs and Receptacles
Standard Duplex
HP
1 hp
Power Indicator
Yes
Visual Indicator Lights
Power Connected
Market
Commercial, Residential
Surge Protection
No
Voltage Rating
125V AC
Grade
Federal Specification
Includes Mounting Hardware
Yes
Resistance Properties
Tamper Resistant
Reverse Service
Yes
Maximum Operating Temperature
150.8 Degrees F
Self Testing
Yes
Includes
Faceplate, Screws, Self Grounding Clip, Wallplate
Horsepower Rating
1 hp
UL 94 Flammability Rating
V-2
Mount Type
Flush
Wire Connection Type
Screw Terminals
Receptacle Type
Decorator Duplex
Minimum Operating Temperature
-31 Degrees F
Contact Material
Brass
Status Indicator Lights
Power Connected
Number of Wall Plates Included
0
Flange Type
Non-Flanged
Shrouded
No
NEMA Enclosure Rating
Not Rated
Number of Gangs
1
IP Rating
Not Rated
AFCI
No

Description

GFI Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI Yes, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Brown, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Tamper Resistant
