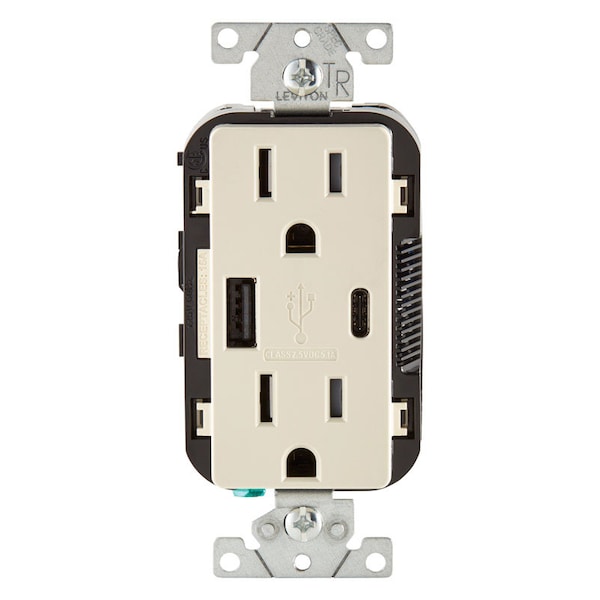

Leviton Decora 15 amps 125 V Type A/C Duplex Light Almond Outlet and USB Charger 5-15R 1 pk
Mfr # T5633-T
Zoro # G3858256
product price: $38.15
/eaKey Features
Type
Type A/C Duplex Receptacle
Voltage
125 VAC
Strap Material
Steel
UL 498
Yes
Terminal ID
Brass-Hot Black-Hot White-Neutral Green-Gnd
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
T5633-T
Zoro #
G3858256
UPC #
78477841266
Country of Origin
China
Details
Type
Type A/C Duplex Receptacle
Voltage
125 VAC
Color
Light Almond
Strap Material
Steel
UL 498
Yes
Terminal ID
Brass-Hot Black-Hot White-Neutral Green-Gnd
Body Material
Thermoplastic
Terminal Accom.
14-12 AWG
Torque Range
14 - 18 in.-lbs
Horsepower Rating
15A-1/2 HP
Termination
Back & Side
Operating Temperature
-10°C to 40°C
Cover Material
Thermoplastic
Product Type
Outlet/USB Combo
NEMA
5-15R
Flammability
Rated V-0 per UL 94
Amperage
15 A
Grounding
Grounding
UL 1310
Yes
Listed
cCSAus
FCC Part 15
Class B
Grade
Commercial Specification Grade
Description
The Type A and Type-C USB Charger/Tamper-Resistant Receptacle offers superior charging power for smartphones, tablets, laptops, monitors, printers and more. Two high-powered vertical USB Ports, one Type A and one Type-C, deliver a combined total of 5.1A charging current and 25 watts of power. Smart chip technology recognizes and optimizes the charging requirements of individual devices and the Type-C port enables the cables to be inserted easily in either direction.
- • Side and back wired
- • Built-in overcurrent protection helps protect electronics from receiving too much power
- • Easy to install
- •
- •
