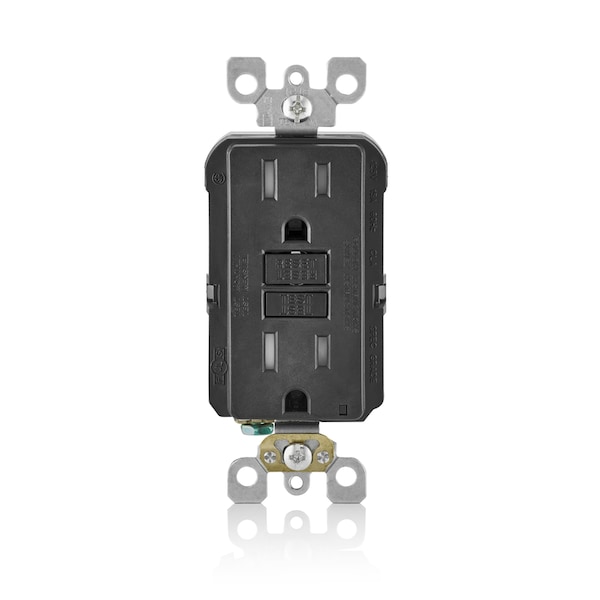

Leviton SmartlockPro 15 amps 125 V Duplex Black GFCI Outlet 5-15R 1 pk

  • Mfr # GFTR1-KE

  • Zoro # G201293949


product price:  $21.04
/ea

Key Features

Grounding
Self-Grounding
Voltage
125 VAC
Type
Standard Duplex
Tamper Resistant
Yes
Color
Black
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFTR1-KE
Zoro #
G201293949
UPC #
78477706879
Country of Origin
China

Details

Grounding
Self-Grounding
Voltage
125 VAC
Type
Standard Duplex
Tamper Resistant
Yes
Color
Black
Pole
2
Terminal Accom.
14-10 AWG
Terminal Screws
Plated Steel
CSA-C22.2 No. 144.1-06
File LR-57811
Flammability
Rated V-2 per UL 94
Trip Level
Class A, 5mA plus or minus 1mA
At Rated Voltage
1 HP
Grounding Screw
Plated Steel
Body Material
Polycarbonate
Temperature Rise
Max 30C after 100 cycles OL at 150 percent rated current
Standards and Certifications
UL/CSA
Dielectric Voltage
Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Line Contacts
Brass Double-Wipe .031 Thick
Face Material
Thermoplastic
CSA C22.2 No. 42
Yes
UL498
Yes
NEMA
5-15R
Termination
Back & Side
Short Circuit Current Rating
10KA
UL 943
File E48380
Feature
Self-Test
Wire
3
Strap Material
Galvanized Steel
Clamps
Brass
Yoke
Zinc-Plated Steel
ANSI
C-73
Operating Temperature
-35C to +66C
Fed Spec WC-596
Yes
Amperage
15 A

Description

Peace of mind all the time. The SmartlockPro Self-Test GFCI tests itself even if you forget. Designed to meet the latest UL standard for auto-monitoring (self-test) our complete line of self-test GFCIs periodically conduct an automatic internal test to confirm that it can respond to a ground fault. With the slimmest profile on the market the device allows for fast and easy installation while Leviton's patented reset lockout mechanism prevents reset of the GFCI if it is not wired or operating correctly. The SmartlockPro Self-Test GFCI is the smart choice in ground fault circuit interrupter protection.


  • • Provides continuous ground fault protection - detects and trips on actual ground fault even when self-test is being conducted
  • • On initial power up, tests the GFCI within 3 seconds
  • • Auto-monitoring exceeds the UL requirement
  • • Auto adapts and shifts to more frequent testing if potential problem is detected
  • • Status indicator light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal
  • • External back wire clamps provide visual indication of proper wire seating
