  11. Locking Connector, L5-30R, 30 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, White, Yellow

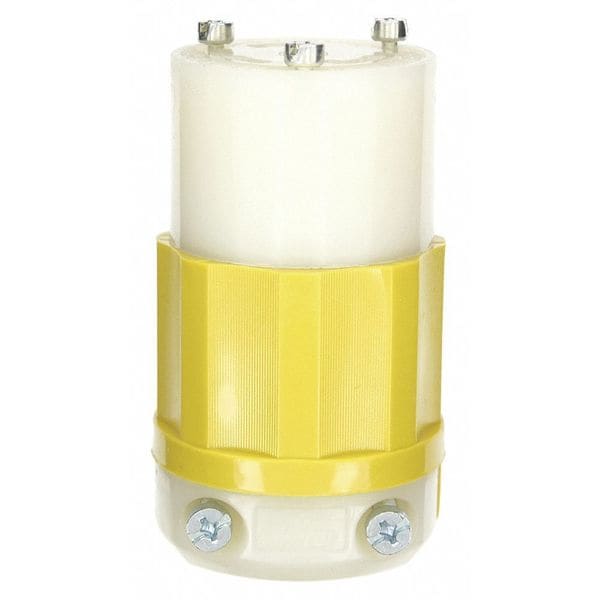

Leviton Locking Connector, L5-30R, 30 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, White, Yellow 2613-CY - main

Locking Connector, L5-30R, 30 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, White, Yellow

  • Mfr # 2613-CY

  • Zoro # G004393402

product price: $45.89
/ea

Key Features

NEMA Receptacle Configuration
L5-30R
Current Rating
30 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2613-CY
Zoro #
G004393402
UPC #
07847780786
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.9375 in
For Minimum Cable Diameter
0.385 in
Maximum Wire Size
8 AWG
Face Diameter
1.84 in
Minimum Wire Size
16 AWG
Outside Diameter
2.08 in

Details

Item
Locking Connector
NEMA Receptacle Configuration
L5-30R
Current Rating
30 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
White, Yellow
Cap Type
No Cap
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, NOM 057 Certified, UL 498, UL Federal Specification WC-596 File E13393
Resistance Properties
Chemical Resistant, Impact Resistant, UV/Sunlight Resistant
Material
Impact Modified Nylon
Body Material
Impact Modified Nylon
Grade
Federal Specification
For Environment
Dry
Minimum Operating Temperature
-40 Degrees F
Housing Material
Nylon
UL 94 Flammability Rating
HB
Maximum Operating Temperature
140 Degrees F
Polarized
Yes
Horsepower Rating
2 hp
Contact Material
Brass
Midget Locking
No
Insulation Material
Nylon
Market
Industrial
NEMA Enclosure Rating
Not Rated
Flame Resistant
Rated HB or better UL94
Dielectric Strength
Withstands 2000V per UL498

Description

Locking Connector, Connection Orientation Straight, Current Rating 30 A, Housing Color White, Yellow, Housing Material Nylon, IP Rating Not Rated, NEMA Receptacle Configuration L5-30R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Resistance Properties Chemical Resistant, Impact Resistant, UV/Sunlight Resistant, Shrouded No, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Cap Type No Cap or Cover, Contact Material Brass
