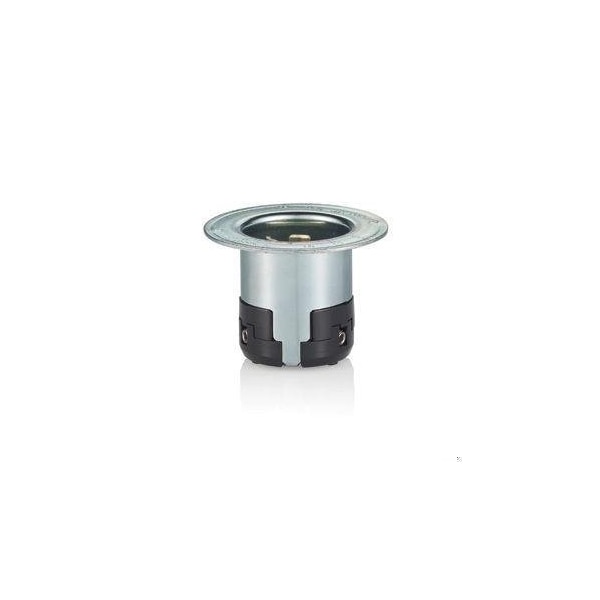

Leviton Locking Inlet, 50 A, 250V AC, Three Phase, 3 Pole, Flush Mount, Screw Terminals, Gray CS8375 - main

Locking Inlet, 50 A, 250V AC, Three Phase, 3 Pole, Flush Mount, Screw Terminals, Gray

  • Mfr # CS8375

  • Zoro # G816091329

product price:  $111.99
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
Non-NEMA
Current Rating
50 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CS8375
Zoro #
G816091329
UPC #
078477326428
Country of Origin
Mexico

Dimensions

Flange Diameter
3.5 in
Flange Width
3.5 in
Face Diameter
2.03 in
Maximum Wire Size
4 AWG
Overall Depth
2.42 in
Mount Hole Center-to-Center Width
1.1 in
Minimum Wire Size
10 AWG
Flange Height
3.8 in
Mount Hole Center-to-Center Height
3.82 in

Details

Item
Locking Inlet
NEMA Receptacle Configuration
Non-NEMA
Current Rating
50 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Gray
Mount Type
Flush
Cover Type
No Cover
Flange Type
Flanged
Standards
CSA C22.2 No 42 File LR-406, RoHS, UL 498
Resistance Properties
Chemical Resistant, Impact Resistant, UV/Sunlight Resistant
Flange Material
Steel
Shrouded
Yes
IP Rating
Not Rated
Wiring Style
Standard
NEMA Enclosure Rating
Not Rated
NEMA Plug Configuration
Non-NEMA
Includes Mounting Hardware
No
Minimum Operating Temperature
-40 Degrees F
Market
Industrial
For Environment
Dry
Housing Material
Nylon
Flange Shape
Round
Connection Orientation
Straight
Number of Blades
4
Midget Locking
No
Maximum Operating Temperature
167 Degrees F
Number of Gangs
1
Grade
Federal Specification
Features
Accepts Slotted and Phillips Head Drivers
Series
Insulgrip
UL 94 Flammability Rating
V-2
Polarized
Yes
Includes
Mounting Hardware
Horsepower Rating
7 1/2 hp
Number of Outlets
1

Description

Fifty Amp
