Shop LEVITON

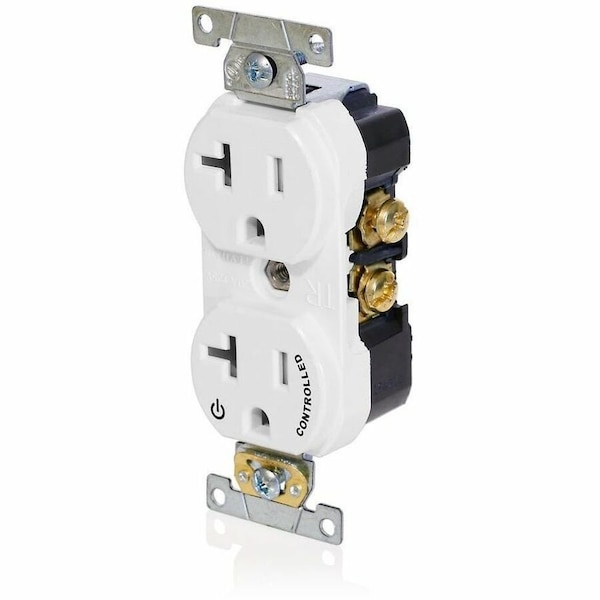

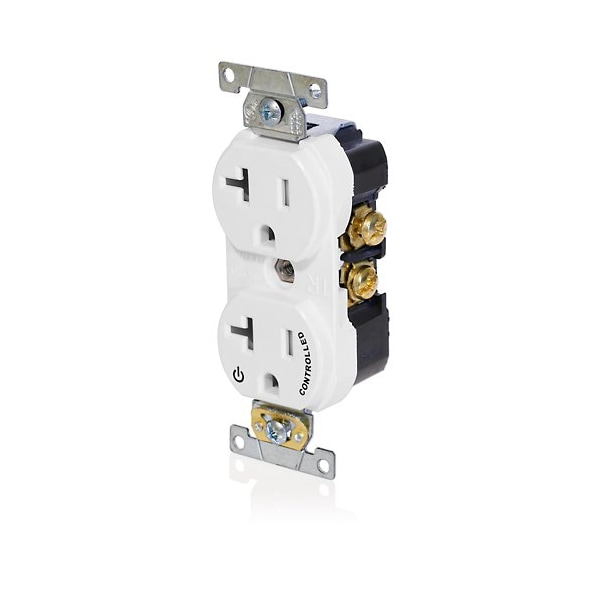

Duplex Outlet, White 20A, 125V, TR

  • Mfr # TBR20-S1W

  • Zoro # G822982277

product price:
$
18.99
/ea

Key Features

Minimum Operating Temperature
-40 Degrees C
Features
Smooth Face
Current Rating
20 A
Number of Outlets
2
Standards
CSA, FULS Marking, UL
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TBR20-S1W
Zoro #
G822982277
UPC #
078477760970
Country of Origin
Mexico

Dimensions

Face Plate Height
2.8 in
Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
10 AWG
Face Plate Width
1.4 in
Minimum Wire Size
14 AWG
Overall Depth
0.8 in

Details

Minimum Operating Temperature
-40 Degrees C
Features
Smooth Face
Current Rating
20 A
Number of Outlets
2
Standards
CSA, FULS Marking, UL
Housing Material
Polypropylene
Resistance Properties
Tamper Resistant
Number of Poles
2
Number of Wires
3
Voltage Rating
125V AC
Wiring Method
Back/Side
Contact Material
Brass
Connection Orientation
Straight
For Environment
Food and Beverage, Oily/Greasy
Maximum Operating Temperature
60 Degrees C
NEMA Receptacle Configuration
5-20R
Wire Connection Type
Screw Terminals
Housing Color
White
Grounding
Grounded
Horsepower Rating
1/2 hp
Receptacle Type
Duplex
Market
Commercial
Item
Duplex Receptacle Outlet

Description

Duplex Receptacle Outlet, Connection Orientation Straight, Current Rating 20 A, Grounding Grounded, Housing Color White, Housing Material Polypropylene, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards CSA, FULS Marking, UL, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back/Side, Horsepower Rating 1/2 hp
