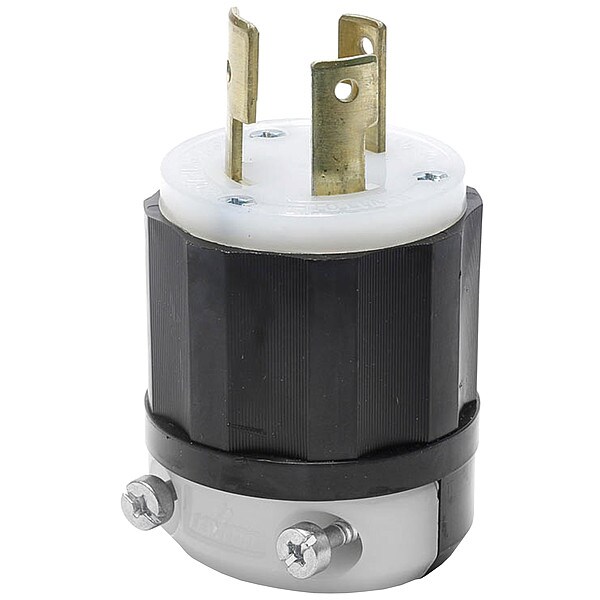

Locking Plug, L10-30P, 30 A, 125/250V AC, Single Phase, 3 Pole, Screw Terminals, Black, White

Mfr # 2661
Zoro # G804255986

35.89

Key Features

NEMA Plug Configuration

L10-30P

Current Rating

30 A

Phase

Single

Number of Poles

Number of Wires

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 2661
Zoro #: G804255986
UPC #: 07847780791
Country of Origin: Mexico

Dimensions

Cord Size: 0.375 in to 0.875 in
Body Length: 2.47 in
For Maximum Cable Diameter: 0.93 in
For Minimum Cable Diameter: 0.385 in
Face Diameter: 1.84 in
Maximum Wire Size: 8 AWG
Minimum Wire Size: 16 AWG
Outside Diameter: 2.08 in

Details

Item: Locking Plug
NEMA Plug Configuration: L10-30P
Current Rating: 30 A
Voltage Rating: 125/250V AC
Phase: Single
Number of Poles: 3
Number of Wires: 3
Number of Blades: 3
Wire Connection Type: Screw Terminals
Wiring Style: Standard
Connection Orientation: Straight
Shrouded: No
Grounding: Non-Grounded
Housing Color: Black, White
Standards: ANSI C73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, NOM 057 Certified, UL 498 File E13393, UL Federal Specification WC-596 File E13393
Resistance Properties: Chemical Resistant, Impact Resistant, UV/Sunlight Resistant
Special Features: Chemical Resistant, Long Lasting Reliability, Resists Impact, Rough Use, Sunlight, Unique Cord Clamp
Material: Impact Modified Nylon
Grade: Federal Specification
IP Rating: Not Rated
Body Material: Impact Modified Nylon
Minimum Operating Temperature: -40 Degrees C
Housing Material: Nylon
Horsepower Rating: 2 hp
Midget Locking: No
Market: Industrial
Polarized: Yes
For Environment: Dry
Blade Material: Brass
Maximum Operating Temperature: 140 Degrees F
Flammability: Rated HB or better UL94
UL 94 Flammability Rating: HB
Power and Ground Indicating Light: No
Features: Industry Exclusive Limited Lifetime Warranty

Description

Locking Plug, Connection Orientation Straight, Current Rating 30 A, Housing Color Black, White, Housing Material Nylon, NEMA Plug Configuration L10-30P, Number of Blades 3, Number of Poles 3, Phase Single, Polarized Yes, Resistance Properties Impact Resistant, Voltage Rating 125/250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Face Diameter 1.84 in, For Maximum Cable Diameter 0.93 in, For Minimum Cable Diameter 0.385 in, Grade Federal Specification, Grounding Non-Grounded
