Shop LEVITON

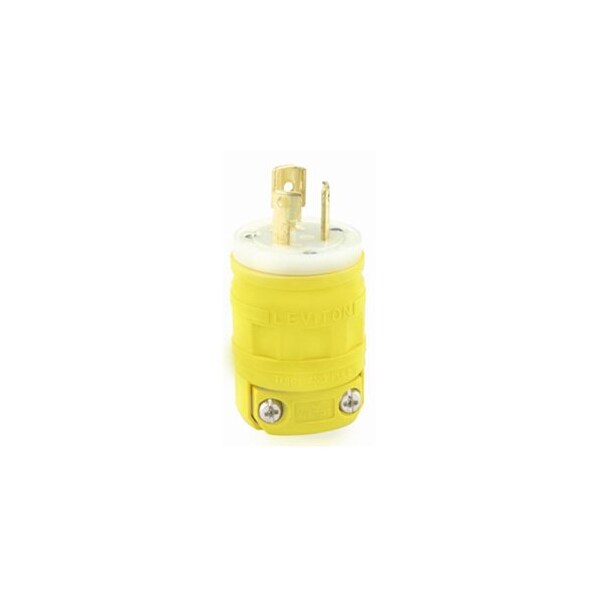

Locking Plug, L5-15P, 15 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Yellow

  • Mfr # 2447

  • Zoro # G215864708

product price:
$
16.79
/ea

Key Features

NEMA Plug Configuration
L5-15P
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
2447
Zoro #
G215864708
UPC #
078477852972
Country of Origin
Mexico
Item
Locking Plug
NEMA Plug Configuration
L5-15P
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
Yes
Grounding
Grounded
Housing Color
Yellow
Standards
ANSI C73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, NOM 057 Certified, UL 498 File E13393, UL Federal Specification WC-596 File E13393
Resistance Properties
Chemical Resistant, Impact Resistant, UV/Sunlight Resistant
Blade Material
Brass
Housing Material
Santoprene TPU
IP Rating
IP44
Market
Industrial
Midget Locking
No
For Environment
Dry
Maximum Operating Temperature
140 Degrees F
Minimum Operating Temperature
-40 Degrees F
Features
Dust Shield on Standard Cable Clamp Prevents Particulates from Entering Wiring Chamber
Grade
General Use
UL 94 Flammability Rating
V-2
Power and Ground Indicating Light
No
Horsepower Rating
1/2 hp

Description

Locking Plug, Connection Orientation Straight, Current Rating 15 A, Housing Color Yellow, Housing Material Santoprene, NEMA Plug Configuration L5-15P, Number of Blades 3, Number of Poles 2, Phase Single, Resistance Properties Impact Resistant, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Face Diameter 1.5 in, For Maximum Cable Diameter 0.655 in, For Minimum Cable Diameter 0.24 in, Grade General Use, Grounding Grounded, Horsepower Rating 1/2 hp
