  11. Locking Plug, L6-15P, 15 A, 250V AC, Single Phase, 2 Pole, Screw Terminals, Black, White

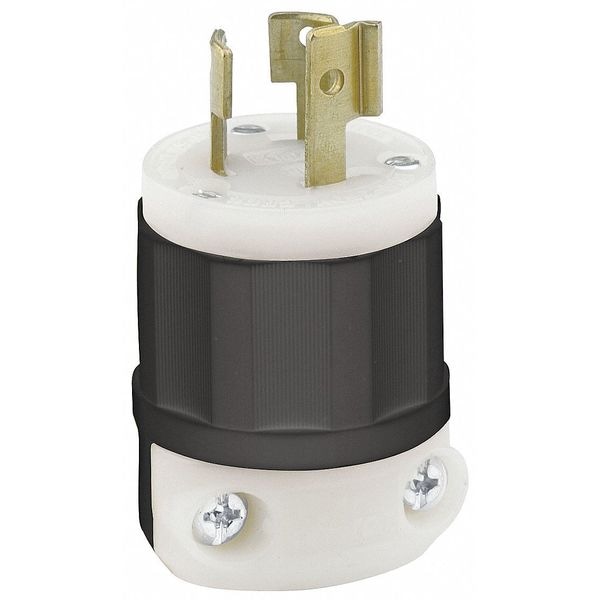

Leviton Locking Plug, L6-15P, 15 A, 250V AC, Single Phase, 2 Pole, Screw Terminals, Black, White 4570-C - main

Locking Plug, L6-15P, 15 A, 250V AC, Single Phase, 2 Pole, Screw Terminals, Black, White

  • Mfr # 4570-C

  • Zoro # G504393407

product price: $13.89
/ea

Key Features

NEMA Plug Configuration
L6-15P
Current Rating
15 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4570-C
Zoro #
G504393407
UPC #
07847779567
Country of Origin
Mexico

Dimensions

For Maximum Cable Diameter
0.685 in
For Minimum Cable Diameter
0.23 in
Cord Size
0.23 in to 0.685 in
Body Length
1.98 in
Outside Diameter
1.53 in
Face Diameter
1.39 in
Minimum Wire Size
18 AWG
Maximum Wire Size
10 AWG
Length
2.76 in

Details

Item
Locking Plug
NEMA Plug Configuration
L6-15P
Current Rating
15 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black, White
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, NOM 057 Certified
Resistance Properties
Chemical Resistant, Impact Resistant, UV/Sunlight Resistant
Grade
Industrial
Body Material
Impact Modified Nylon
Material
Impact Modified Nylon
Special Features
Chemical Resistant, Resists Impact, Rough Use, Sunlight
Blade Material
Brass
Horsepower Rating
1 1/2 hp
Minimum Operating Temperature
-40 Degrees C
Polarized
Yes
Market
Industrial
Midget Locking
No
For Environment
Dry
Housing Material
Nylon
Maximum Operating Temperature
140 Degrees F
Flammability
Rated HB or better UL94

Description

Locking Plug, Connection Orientation Straight, Current Rating 15 A, Housing Color Black, White, Housing Material Nylon, NEMA Plug Configuration L6-15P, Number of Blades 3, Number of Poles 2, Phase Single, Polarized Yes, Resistance Properties Chemical Resistant, Impact Resistant, UV/Sunlight Resistant, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Face Diameter 1.39 in, For Maximum Cable Diameter 0.685 in, For Minimum Cable Diameter 0.23 in
