Shop LEVITON

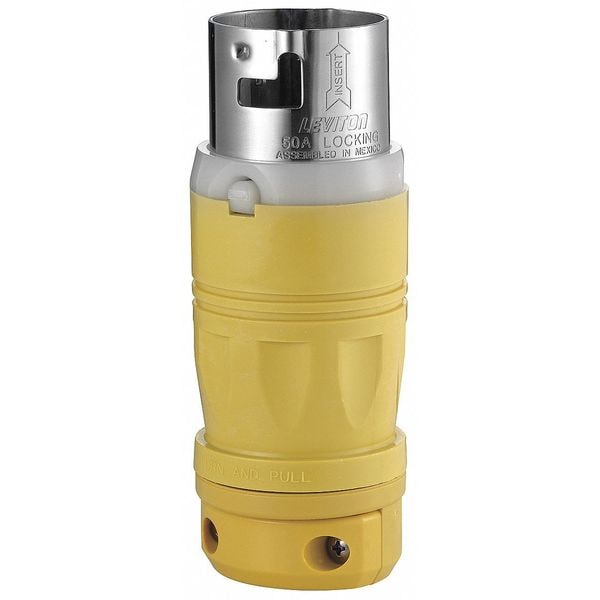

Locking Plug, Non-NEMA, 50 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, White, Yellow

  • Mfr # 6361CR

  • Zoro # G404256000

product price:
$
132.99
/ea
Free Shipping & Returns

Key Features

NEMA Plug Configuration
Non-NEMA
Current Rating
50 A
Phase
Single
Number of Poles
2
Number of Wires
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
6361CR
Zoro #
G404256000
UPC #
07847780457
Country of Origin
Mexico
Item
Locking Plug
NEMA Plug Configuration
Non-NEMA
Current Rating
50 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
Yes
Grounding
Grounded
Housing Color
White, Yellow
Standards
CSA C22.2 No. 42 File E152105, NOM 057 Certified, RoHS Compliant, UL 498 File E13399
Resistance Properties
Chemical Resistant, Corrosion Resistant, Impact Resistant, UV/Sunlight Resistant
IP Rating
Not Rated
Special Features
Corrosion Resistant
Grade
General Use
Material
Nylon
Housing Material
Nylon
Market
Industrial
Blade Material
Nickel-Plated Brass
Midget Locking
No
For Environment
Corrosive
Minimum Operating Temperature
-40 Degrees C
Polarized
Yes
Maximum Operating Temperature
75 Degrees C
Flammability
UL94 V-2
UL 94 Flammability Rating
V-2
Power and Ground Indicating Light
No
Features
Dust Shield on Standard Cable Clamp Prevents Particulates from Entering Wiring Chamber

Description

Locking Plug, Connection Orientation Straight, Current Rating 50 A, Housing Color White, Yellow, Housing Material Nylon, NEMA Plug Configuration Non-NEMA, Number of Blades 3, Number of Poles 2, Phase Single, Polarized Yes, Resistance Properties Impact Resistant, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Face Diameter 2.56 in, For Maximum Cable Diameter 1.125 in, For Minimum Cable Diameter 0.68 in, Grade General Use, Grounding Grounded
