Shop LEVITON

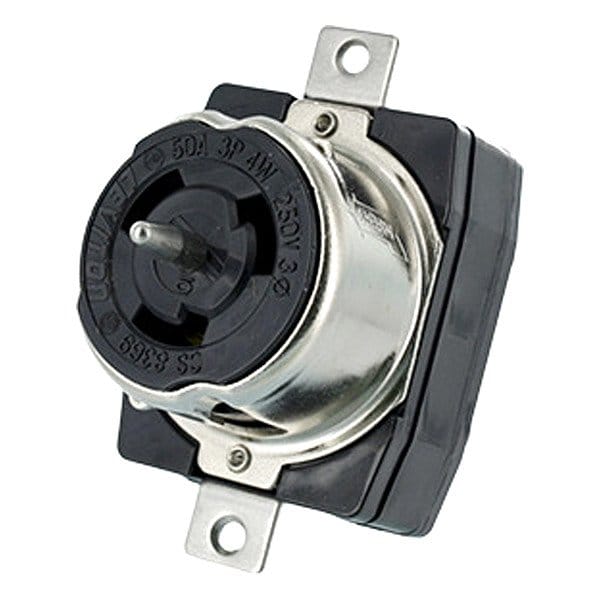

Locking Receptacle, 50 A, 250V AC, Black

  • Mfr # CS8369

  • Zoro # G022586930

product price:  $156.99
/ea
Free Shipping & Returns

Key Features

Features
Extended Life Reduces Equipment Downtime, Premium Materials for Rugged Construction, Reduced Downtime Reduces Labor Costs and Increases Profits, Rugged Construction Extends Device Life
Number of Outlets
1
Housing Material
Nylon
NEMA Enclosure Rating
Not Rated
UL 94 Flammability Rating
V-0
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CS8369
Zoro #
G022586930
UPC #
78477326411
Country of Origin
Mexico

Dimensions

Mount Hole Center-to-Center Height
3.75 in
Face Plate Height
2.69 in
Overall Depth
3.18 in
Maximum Wire Size
6 AWG
Minimum Wire Size
10 AWG
Face Plate Width
2.13 in

Details

Features
Extended Life Reduces Equipment Downtime, Premium Materials for Rugged Construction, Reduced Downtime Reduces Labor Costs and Increases Profits, Rugged Construction Extends Device Life
Number of Outlets
1
Housing Material
Nylon
NEMA Enclosure Rating
Not Rated
UL 94 Flammability Rating
V-0
Housing Color
Black
Minimum Operating Temperature
-40 Degrees F
IP Rating
Not Rated
Number of Poles
3
Market
Industrial
Hub Type
Dead End
For Environment
Industrial
Item
Locking Receptacle
Horsepower Rating
75 hp
NEMA Receptacle Configuration
Non-NEMA
Cover Type
No Cover
Grounding
Grounded
Phase
Single
Connection Orientation
Straight
Resistance Properties
Corrosion Resistant
Number of Wires
4
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL
Voltage Rating
250V AC
Maximum Operating Temperature
167 Degrees F
Current Rating
50 A
Shrouded
Yes
Number of Gangs
1
Midget Locking
No
Contact Material
Brass
Mount Type
Flush
Flange Type
Non-Flanged
Series
Valise
Wire Connection Type
Screw Terminals

Description

Locking Receptacle, Connection Orientation Straight, Current Rating 50 A, Flange Shape Not Applicable, Flange Type Non-Flanged, Housing Color Black, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration Non-NEMA, Number of Gangs 1, Number of Poles 3, Number of Wires 4, Phase Single, Shrouded Yes, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Wiring Style Hinged, Contact Material Brass, Cover Type No Cover
