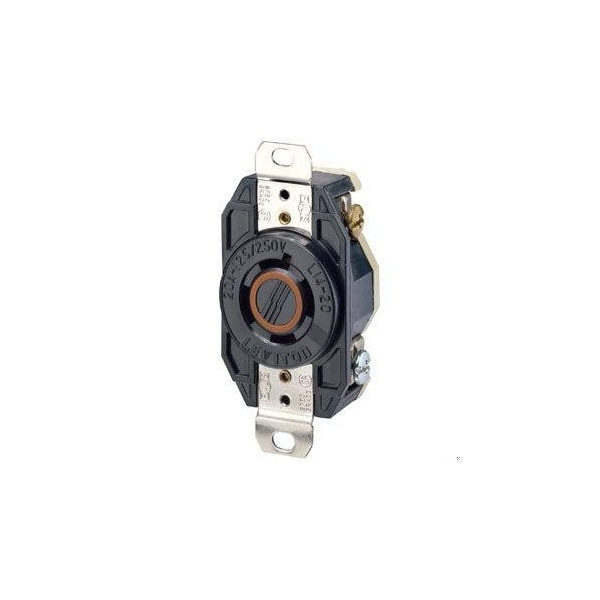

Leviton Flanged Locking Receptacle, L14-20R, 20 A, 125/250V AC, Single Phase, 3 Pole, Flush Mount, Black 2410 - main

Flanged Locking Receptacle, L14-20R, 20 A, 125/250V AC, Single Phase, 3 Pole, Flush Mount, Black

  • Mfr # 2410

  • Zoro # G616090843

product price:  $27.19
/ea

Key Features

NEMA Receptacle Configuration
L14-20R
Current Rating
20 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
2410
Zoro #
G616090843
UPC #
-
Country of Origin
Mexico

Dimensions

Mount Hole Center-to-Center Height
3.75 in
Face Diameter
1.56 in
Overall Depth
1.31 in
Face Plate Width
1.69 in
Maximum Wire Size
8 AWG
Face Plate Height
2.67 in
Minimum Wire Size
14 AWG

Details

Item
Flanged Locking Receptacle
NEMA Receptacle Configuration
L14-20R
Current Rating
20 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
Flange Type
Non-Flanged
Standards
ANSI C-73, CSA: C22.2 No. 42, NEMA WD-1 and WD-6, NOM 57, RoHS, UL 498, UL FED SPEC W-C-596
NEMA Enclosure Rating
Not Rated
Shrouded
Yes
Wiring Style
Standard
Contact Material
Brass
For Environment
Corrosive
Maximum Operating Temperature
60 Degrees C
Number of Gangs
1
Housing Material
Nylon
Minimum Operating Temperature
-40 Degrees C
Polarized
Yes
Market
Industrial
Connection Orientation
Straight
Midget Locking
No
Horsepower Rating
1 hp
Hub Type
Dead End
Number of Outlets
2
UL 94 Flammability Rating
V-0
Series
Hubbell-PRO
Cover Type
No Cover
IP Rating
Not Rated

Description

Flush Mtg Locking Receptacle,Black
