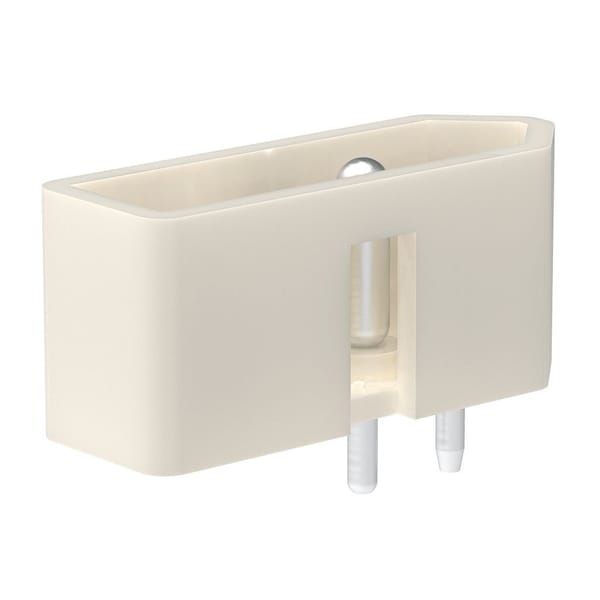

Molex 093 Shrd Pin Skt Hdrs 4Ckt 10-18-1040 - main

093 Shrd Pin Skt Hdrs 4Ckt

  • Mfr # 10-18-1040

  • Zoro # G7921478

product price:  $1.15
/ea
Sold in multiples of 65 for $74.75

Key Features

PC Tail Length
4.32mm
Material - Plating Mating
Tin
PCB Locator
Yes
Material - Metal
Brass, Phosphor Bronze
Orientation
Vertical
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
10-18-1040
Zoro #
G7921478
UPC #
-
Country of Origin
Mexico

Dimensions

PC Tail Length
4.32mm
PCB Thickness - Recommended
1.60mm

Details

Material - Plating Mating
Tin
PCB Locator
Yes
Material - Metal
Brass, Phosphor Bronze
Orientation
Vertical
UL
E29179
Polarized to Mating Part
Yes
Circuits (maximum)
4
Plating min - Mating
1.270µm, 5.080µm
Circuits (Loaded)
2
Flammability
94V-2
Material - Plating Termination
Tin
Voltage - Maximum
250V
Color - Resin
Black
Number of Rows
1
CSA
LR19980
Shrouded
Fully
Temperature Range - Operating
-40° to +105°C
Lock to Mating Part
Yes
Pitch - Mating Interface
5.03mm
Current - Maximum per Contact
5.0A
Material - Resin
Polyester
Polarized to PCB
Yes
Durability (mating cycles max)
25
Plating min - Termination
1.270µm, 5.080µm
Termination Interface: Style
Through Hole
