  11. Mod Recept, Blk, 20 A, GFCI, 2P3W, Bk;Sd, 1PK

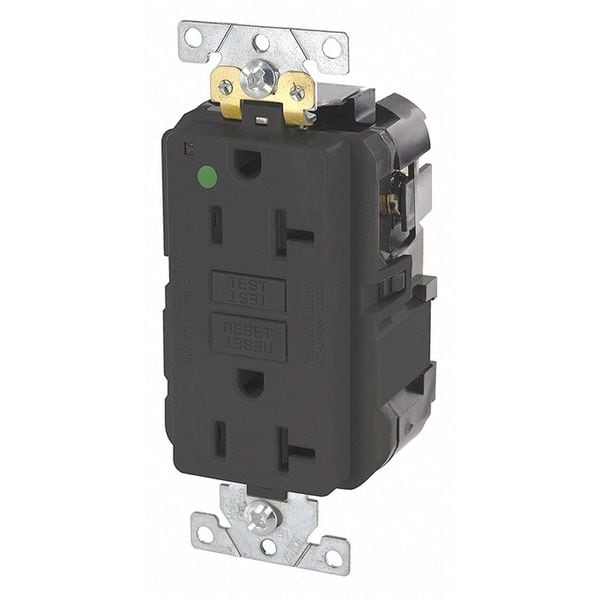

Leviton Mod Recept, Blk, 20 A, GFCI, 2P3W, Bk;Sd, 1PK MGFN2-HGE - main

Mod Recept, Blk, 20 A, GFCI, 2P3W, Bk;Sd, 1PK

  • Mfr # MGFN2-HGE

  • Zoro # G604392881

product price: $34.49
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
GFCI
Yes
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MGFN2-HGE
Zoro #
G604392881
UPC #
07847772439
Country of Origin
China

Dimensions

Overall Depth
1.2 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.3 in
Face Plate Height
2.8 in

Details

Item
Modular Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
GFCI
Yes
Phase
Single
Grounding
Grounded
Number of Outlets
2
Housing Color
Black
Housing Material
Polycarbonate
NEMA Enclosure Rating
Not Rated
NEMA Receptacle Configuration
5-20R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
ANSI C73, CSA Certified, Federal Specification, RoHS Compliant, UL Listed
Wiring Method
Back, Side
HP
1 hp
Voltage - Plugs and Receptacles
125V
Color
Black
Weather Resistant - Plugs and Receptacles
No
Special Features
Circuit ID Label for Identification, Solid Brass Locking Pin
Tamper Resistant
No
Application Environment
Hospital Grade
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Self-Testing
Yes
Amps - Plugs and Receptacles
20 A
Surge Suppression
Yes
Power Indicator
Yes
Color - Plugs and Receptacles
Black
Wiring Method - Plugs and Receptacles
Back and Side
Outlet Type - Plugs and Receptacles
Duplex
Voltage
125 VAC
Item - Plugs and Receptacles
GFCI Receptacle
Minimum Operating Temperature
-31 Degrees F
Hub Type
Feed Through
Visual Indicator Lights
Power Connected
UL 94 Flammability Rating
V-0
Maximum Operating Temperature
150.8 Degrees F
Receptacle Type
Decorator Duplex
Voltage Rating
125V AC
Contact Material
Brass
Horsepower Rating
1 hp
Wire Connection Type
Modular Wiring
Mount Type
Flush
Surge Protection
Yes
Includes Mounting Hardware
Yes
Self Testing
Yes
Grade
Hospital Grade Fed. Spec.
Feed-Through Current
20 Amp
Line Contacts
Brass
Pole
2
Body Material
Polycarbonate
Strap Material
Galvanized Steel
Ground Clips
Brass
Applicable Standards
UL 943, UL 498, CSA C22.2 No. 42 & 144, FedSpec W-C-596
Short Circuit Current Rating
2kA
ANSI
C-73
Function
GFCI
Flammability
Rated V-0 per UL 94
NEMA
WD-1 & WD-6
Termination
Modular (line) and Back or Side Wire (load)
Device Type
Duplex Receptacle Outlet
Face Material
PBT
Screw Terminal Torque
14-18 in-lbs
Operating Temperature
-35C to +66C
Terminal Clamp
Brass
Amperage
20 A
At Rated Voltage
1 HP
Feature 3
Power Indication
Wire
3
Terminal Screws
Plated Steel

Description

Modular Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI Yes, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Black, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Not Applicable
