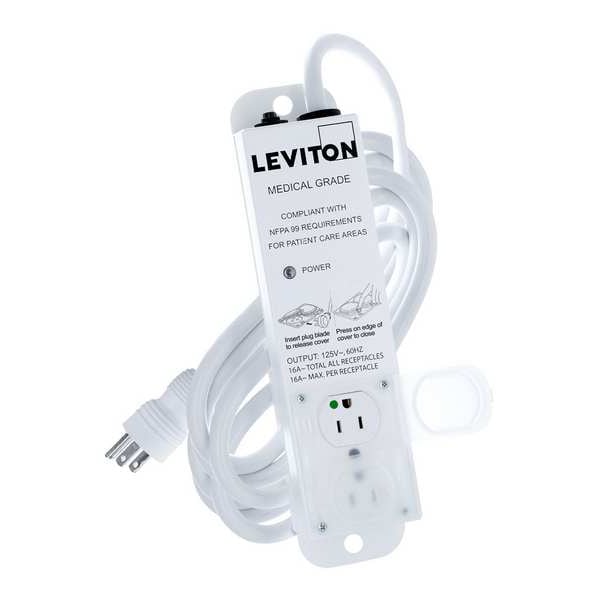

Outlet Strip, Medical Grade, 2 5-15R, 5-15P, 15 ft., White

Mfr # 5302M-1N5
Zoro # G904186746

126.99

Free Shipping & Returns

Key Features

Type

Medical Grade

Total Number of Outlets

Receptacle Configuration

5-15R

Plug Configuration

5-15P

Color

White

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 5302M-1N5
Zoro #: G904186746
UPC #: 078477611586
Country of Origin: Mexico

Dimensions

Cord Length: 15 ft.
Length: 10 3/4 in
Height: 1 21/32 in
Width: 2 19/32 in
Wire Size: 14 AWG
Outlet Strip Length: 10 13/16 in

Details

Item: Outlet Strip
Type: Medical Grade
Total Number of Outlets: 2
Number of Outlets: 2
Receptacle Configuration: 5-15R
Plug Configuration: 5-15P
Color: White
Gauge/Conductor: 14/3
Standards: NFPA: NFPA 99 2012 ed, UL 1363A and CSA C22.2: No. 21, UL 60601-1 and CSA C22.2: No.60601-1, UL 60950-1 and CSA C22.2: No. 60950-1
NEMA Plug Configuration: 5-15P
Medical Grade: Yes
Max. Amps: 15 A
Finish: Powder Coated
Medical Facility Use: Outside Patient Care Areas (UL 1363); Patient Care (UL 60601-1)
Voltage: 125V AC
Outlet Surge Protection: No
Power Indicator: Yes
NEC Cord Designation: #14/3 SJT
NEMA Receptacle Configuration: 5-15R
Hz: 60 Hz
Housing Material: Metal
Application: Medical
Mounting Style: Screw
Trade Designation: SJT
Special Features: Special Purpose Relocatable Power Tap (SPRPT)
Rated Energy Absorption: 644 J
Maximum Surge Current: 27 kA
Frequency: 60 Hz
Maximum Current: 15 A
Noise Attenuation: 6dB to -29dB (100kHz to 100MHz)
Communication Port: None
Medical Facility Use UL Rating: UL 1363A, UL 1449, UL 60601-1
Number of Conductors: 3
Product Type: Outlet Strip
Includes: Locking Cover
Plug Style: Straight

Description

Outlet Strip, Application Medical, Housing Material Metal, Total Number of Outlets 2, Max. Amps 15 A, Cord Length 15 ft, Number of Power Switches 0, Power Indicator Yes, Number of Outlet Rows 2, Receptacle Configuration Hospital Grade, Plug Configuration NEMA 5-15P, Wire Size 14 AWG, Mounting Style Screw, Color White, Medical Facility Use Outside Patient Care Areas (UL 1363); Patient Care (UL 60601-1), Number of Transformer Outlets 0, Number of Conductors 3, Voltage 125V AC, Length 10 3/4 in
