  11. Outlet Strip, Surge, Rack Mounted, 2 5-20R, 5-20P, 7 ft., White

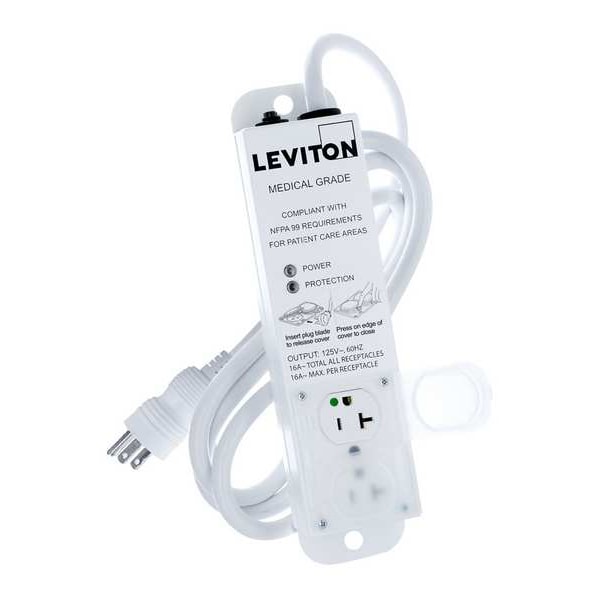

Leviton Outlet Strip, Surge, Rack Mounted, 2 5-20R, 5-20P, 7 ft., White 5302M-2S7 - main

Outlet Strip, Surge, Rack Mounted, 2 5-20R, 5-20P, 7 ft., White

  • Mfr # 5302M-2S7

  • Zoro # G204186774

product price: $176.99
/ea
Free Shipping & Returns

Key Features

Type
Surge, Rack Mounted
Total Number of Outlets
2
Receptacle Configuration
5-20R
Plug Configuration
5-20P
Color
White
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5302M-2S7
Zoro #
G204186774
UPC #
078477611685
Country of Origin
Mexico

Dimensions

Cord Length
7 ft.
Width
2 5/8 in
Height
1 5/8 in
Length
10 3/4 in

Details

Item
Outlet Strip
Type
Surge, Rack Mounted
Number of Outlets
2
Total Number of Outlets
2
Receptacle Configuration
5-20R
Plug Configuration
5-20P
Color
White
Gauge/Conductor
12/3
Standards
ANSI/IEEE: Category A, NFPA: NFPA 99 2012 ed, UL 1363A and CSA C22.2: No. 21, UL 1449 3rd Ed and CSA C22.2: No. 8, UL 60601-1 and CSA C22.2: No.60601-1, UL 60950-1 and CSA C22.2: No. 60950-1
Noise Attenuation
-6 to -29dB
Voltage
125V AC
Mounting Style
Mounting Hole
Hz
60 Hz Hz
Max. Amps
20 A
Special Features
Easily Accommodates Surface Mounting and IV Pole Mounting With the Use of the Mounting Bracket, Heavy Duty Steel Construction Withstands the Rigors of Demanding Environments, Locking Safety Covers are Splash-Resistant and Protect From Incidental Contact With Unused Outlets
Trade Designation
SJT
Application
Hospital and Medical Facility
Power Indicator
Yes
Medical Facility Use
Outside Patient Care Areas (UL 1449); Patient Care - Only When Permanently Mounted (UL 1363A); Patient Care (UL 60601-1)
For Use With
Isolated Power Systems
Surge Protection Indicator
Yes
Rated Joules
644
Housing Material
Steel
Max. Surge Current
27 kA
UL 1363A & CSA C22.2
No. 21
Enclosure
Powder Coated Steel
Outlet Covers
Polypropylene
Line Cord
#14/3 SJT
Frequency
60Hz
Noise Filtering
-6dB to -29dB (100kHz to 100MHz)
Number of Receptacles
2
Maximum Surge Current, Per Mode (L-N)
27kA
UL 60950-1 & CSA C22.2
No. 60950-1
Surge Protection
Yes
Joules Rating
644J
HG Outlet Configuration
NEMA 5-20R
Maximum Leakage Current
<100µA
Grade
Medical
Voltage Protection Rating (VPR) L-N, L-G, N-G
600V, 600V, 500V
Operating Temperature
0°C to 40°C

Description

Outlet Strip, Application Medical, Housing Material Metal, Total Number of Outlets 2, Max. Amps 20 A, Cord Length 7 ft, Number of Power Switches 0, Power Indicator Yes, Number of Outlet Rows 2, Receptacle Configuration Hospital Grade, Plug Configuration NEMA 5-20P, Wire Size 14 AWG, Mounting Style Screw, Color White, Medical Facility Use Outside Patient Care Areas (UL 1449); Patient Care - Only When Permanently Mounted (UL 1363A); Patient Care (UL 60601-1), Number of Transformer Outlets 0

Restrictions
