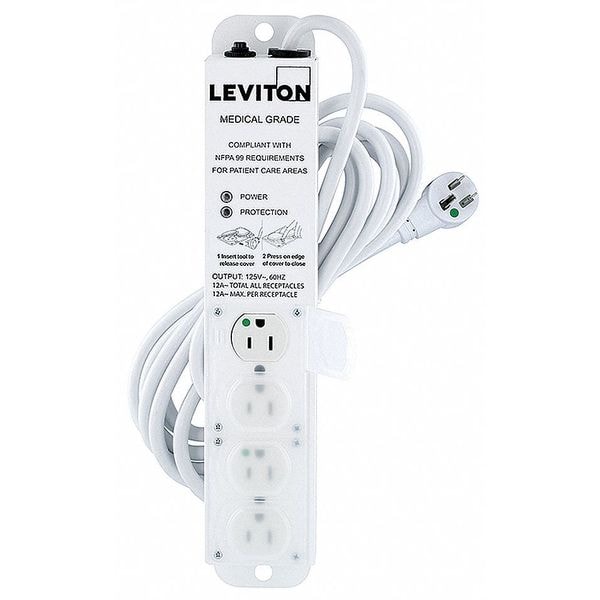

Outlet Strip, Surge, Rack Mounted, 4 5-15R, 5-15P, 15 ft., White

Mfr # 5304M-1S5
Zoro # G404186772

148.99

Free Shipping & Returns

Key Features

Type

Surge, Rack Mounted

Total Number of Outlets

Receptacle Configuration

5-15R

Plug Configuration

5-15P

Color

White

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 5304M-1S5
Zoro #: G404186772
UPC #: 078477611838
Country of Origin: Mexico

Dimensions

Cord Length: 15 ft.
Height: 1 11/16 in
Length: 13 3/4 in
Width: 2 5/8 in
Outlet Strip Length: 13 13/16 in

Details

Item: Outlet Strip
Type: Surge, Rack Mounted
Number of Outlets: 4
Total Number of Outlets: 4
Receptacle Configuration: 5-15R
Plug Configuration: 5-15P
Color: White
Gauge/Conductor: 14/3
Standards: ANSI/IEEE: Category A, NFPA: NFPA 99 2012 ed, UL 1363A and CSA C22.2: No. 21, UL 1449 3rd Ed and CSA C22.2: No. 8, UL 60601-1 and CSA C22.2: No.60601-1, UL 60950-1 and CSA C22.2: No. 60950-1
Application: Hospital and Medical Facility
Power Indicator: Yes
Trade Designation: SJT
Max. Surge Current: 27 kA
Max. Amps: 15 A
Surge Protection Indicator: Yes
Housing Material: Steel
Noise Attenuation: -6 to -29dB
Special Features: Easily Accommodates Surface Mounting and IV Pole Mounting With the Use of the Mounting Bracket, Heavy Duty Steel Construction Withstands the Rigors of Demanding Environments, Locking Safety Covers are Splash-Resistant and Protect From Incidental Contact With Unused Outlets
Rated Joules: 644
Voltage: 125V AC
For Use With: Isolated Power Systems
Hz: 60 Hz
Medical Facility Use: Outside Patient Care Areas (UL 1449); Patient Care - Only When Permanently Mounted (UL 1363A); Patient Care (UL 60601-1)
Mounting Style: Screw
Maximum Surge Current, Per Mode (L-N): 27kA
Enclosure: Powder Coated Steel
Number of Receptacles: 4
Operating Temperature: 0Â°C to 40Â°C
Voltage Protection Rating (VPR) L-N, L-G, N-G: 600V, 600V, 500V
UL 60950-1 & CSA C22.2: No. 60950-1
Outlet Covers: Polypropylene
Frequency: 60 Hz Hz
Maximum Leakage Current: <100ÂµA
Noise Filtering: -6dB to -29dB (100kHz to 100MHz)
Line Cord: #14/3 SJT
Surge Protection: Yes
UL 1363A & CSA C22.2: No. 21
Grade: Medical
HG Outlet Configuration: NEMA 5-15R
Joules Rating: 644J
NEMA Plug Configuration: 5-15P
Rated Energy Absorption: 644 J
Maximum Current: 15 A
Medical Facility Use UL Rating: UL 1449, UL 1363A, UL 60601-1
Maximum Surge Current: 27 kA

Description

Surge Protected Outlet Strip, Application Hospital and Medical Facility, Housing Material Steel, Total Number of Outlets 4, Max. Amps 15 A, Cord Length 15 ft, Power Indicator Yes, Receptacle Configuration Hospital Grade, Plug Configuration NEMA 5-15P, Mounting Style Screw, Medical Facility Use Outside Patient Care Areas (UL 1449); Patient Care - Only When Permanently Mounted (UL 1363A); Patient Care (UL 60601-1), Voltage 125V AC, Length 13 3/4 in
