  6. Outlet Strip, Surge, Rack Mounted, 6 5-15R, 5-15P, 7 ft., White

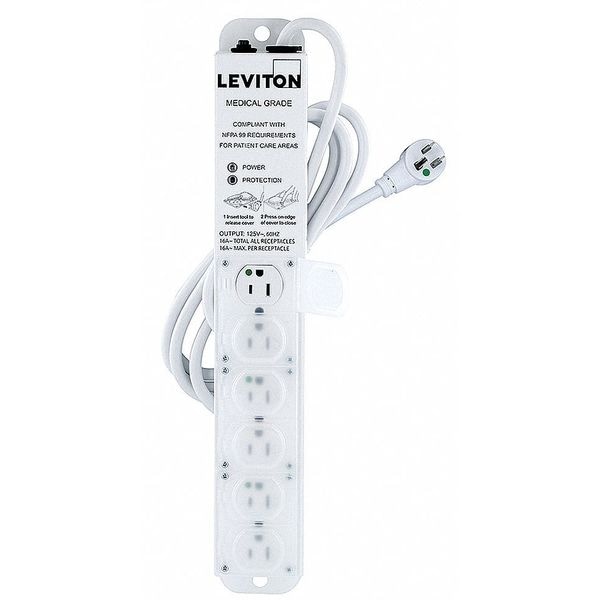

Leviton Outlet Strip, Surge, Rack Mounted, 6 5-15R, 5-15P, 7 ft., White 5306M-1S7 - main

Outlet Strip, Surge, Rack Mounted, 6 5-15R, 5-15P, 7 ft., White

  • Mfr # 5306M-1S7

  • Zoro # G904186777

product price:  $177.99
/ea
Free Shipping & Returns

Key Features

Type
Surge, Rack Mounted
Total Number of Outlets
6
Receptacle Configuration
5-15R
Plug Configuration
5-15P
Color
White
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5306M-1S7
Zoro #
G904186777
UPC #
078477611975
Country of Origin
Mexico

Dimensions

Cord Length
7 ft.
Height
1 5/8 in
Width
2 5/8 in
Length
16 7/8 in

Details

Item
Outlet Strip
Type
Surge, Rack Mounted
Number of Outlets
6
Total Number of Outlets
6
Receptacle Configuration
5-15R
Plug Configuration
5-15P
Color
White
Gauge/Conductor
14/3
Standards
ANSI/IEEE: Category A, NFPA: NFPA 99 2012 ed, UL 1363A and CSA C22.2: No. 21, UL 1449 3rd Ed and CSA C22.2: No. 8, UL 60601-1 and CSA C22.2: No.60601-1, UL 60950-1 and CSA C22.2: No. 60950-1
Mounting Style
Mounting Hole
Max. Surge Current
27 kA
Special Features
Easily Accommodates Surface Mounting and IV Pole Mounting With the Use of the Mounting Bracket, Heavy Duty Steel Construction Withstands the Rigors of Demanding Environments, Locking Safety Covers are Splash-Resistant and Protect From Incidental Contact With Unused Outlets
Trade Designation
SJT
Voltage
125V AC
Housing Material
Steel
Medical Facility Use
Outside Patient Care Areas (UL 1449); Patient Care - Only When Permanently Mounted (UL 1363A); Patient Care (UL 60601-1)
Surge Protection Indicator
Yes
Application
Hospital and Medical Facility
Power Indicator
Yes
Max. Amps
15 A
Rated Joules
644
Hz
60 Hz Hz
For Use With
Isolated Power Systems
Noise Attenuation
-6 to -29dB
Frequency
60Hz
Enclosure
Powder Coated Steel
UL 60950-1 & CSA C22.2
No. 60950-1
Maximum Leakage Current
<100µA
Operating Temperature
0°C to 40°C
HG Outlet Configuration
NEMA 5-15R
UL 1363A & CSA C22.2
No. 21
Surge Protection
Yes
Joules Rating
644J
Grade
Medical
Number of Receptacles
6
Outlet Covers
Polypropylene
Maximum Surge Current, Per Mode (L-N)
27kA
Noise Filtering
-6dB to -29dB (100kHz to 100MHz)
Line Cord
#14/3 SJT
Voltage Protection Rating (VPR) L-N, L-G, N-G
600V, 600V, 500V

Description

Outlet Strip, Application Medical, Housing Material Metal, Total Number of Outlets 6, Max. Amps 15 A, Cord Length 7 ft, Number of Power Switches 0, Power Indicator Yes, Number of Outlet Rows 6, Receptacle Configuration Hospital Grade, Plug Configuration NEMA 5-15P, Wire Size 14 AWG, Mounting Style Screw, Color White, Medical Facility Use Outside Patient Care Areas (UL 1449); Patient Care - Only When Permanently Mounted (UL 1363A); Patient Care (UL 60601-1), Number of Transformer Outlets 0

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
