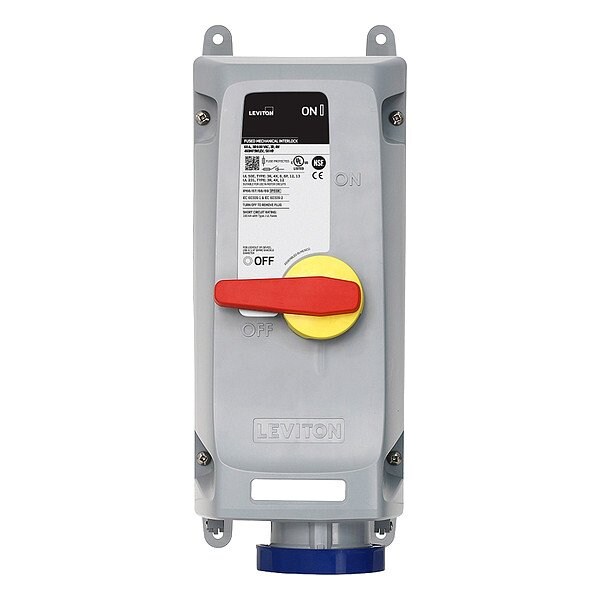

Pin and Sleeve Mechanical Interlock

Name: Pin and Sleeve Mechanical Interlock
Brand: Leviton
SKU: G315554936
Price: 1936.99 USD
Availability: InStock

1,936.99

/ea

Free Shipping & Returns

For Environment

Food and Beverage, Washdown

Standards

CE, CSA C22.2 No 94.1-07, IEC 60309-1 and 60309-2, UL 1682, UL 1686, UL 231, UL 50, UL 50E, UL 60947-1, UL 60947-4-1, UL 746

UL 94 Flammability Rating

V-0

NEMA Enclosure Rating

12, 3R, 4X

Grounding

Grounded

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Get 10% off your order

Specifications

Item: Mechanical Interlock
For Environment: Food and Beverage, Washdown
Standards: CE, CSA C22.2 No 94.1-07, IEC 60309-1 and 60309-2, UL 1682, UL 1686, UL 231, UL 50, UL 50E, UL 60947-1, UL 60947-4-1, UL 746
UL 94 Flammability Rating: V-0
NEMA Enclosure Rating: 12, 3R, 4X
Grounding: Grounded
Electrical Connection Type: Pin and Sleeve
IP Rating: IP66, IP67, IP68, IP69K
Disconnect Switch: Yes
Enclosure Lock Type: Padlockable
Maximum Operating Temperature: 167 Degrees F
Minimum Operating Temperature: -40 Degrees F
Contact Material: Nickel-Plated Brass
Phase: Three
Locking Handle: Yes
Reverse Service: No
Wire Connection Type: Screw Terminals
Housing Material: PBT, Polycarbonate
Voltage Rating: 240V AC
Horsepower Rating: 15 hp
Compatible Plug Manufacturer Part Number: 460P9WLEV
Resistance Properties: UV/Sunlight Resistant
Current Rating: 60 A
For Location: Outdoor
Fuse Protection: Fused
Handle Material: PBT, Polycarbonate
Number of Wires: 4
Hub Type: Dead End
Handle Type: Lockable
Housing Color: Blue
Viewing Window: No
Number of Poles: 3
Series: LEV
Circuit Breaker: No

Pin and Sleeve Mechanical Interlock
