Plugs and Receptacles

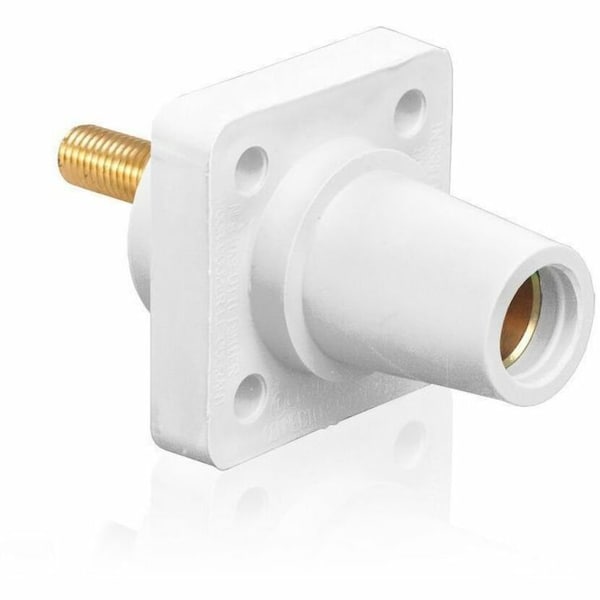

- Mfr # 16R24-1UW
- Zoro # G422587629
product price:Â
$
32.75
/ea
Key Features
Mounting Style
Through Hole Mounting
Series
16
Contact Material
Brass
Flange Width
2.27 in
Connection Orientation
Angled
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 16R24-1UW
- Zoro #
- G422587629
- UPC #
- 78477732601
- Country of Origin
- Mexico
- Mounting Style
- Through Hole Mounting
- Series
- 16
- Contact Material
- Brass
- Connection Orientation
- Angled
- Item
- Single Pole Receptacle
- Resistance Properties
- Chemical Resistant, UV/Sunlight Resistant
- Gender
- Female
- Housing Material
- Santoprene TPV
- Terminal Connection Type
- Threaded Stud
- Standards
- CSA, UL
- End Type
- Taper Nose
- Flange Shape
- Square
- Housing Color
- White
- Voltage Rating
- 600V AC, 600V DC
- For Location
- Outdoor
- Minimum Operating Temperature
- -40 Degrees F
- Current Rating
- 400 A
- NEMA Enclosure Rating
- 3R
- Maximum Operating Temperature
- 185 Degrees F
Description
Single Pole Receptacle, Connection Orientation Angled, Current Rating 400 A, Gender Female, Housing Color White, Housing Material Santoprene TPV, Maximum Wire Size 4/0 AWG, Minimum Wire Size 2 AWG, Voltage Rating 600V AC, 600V DC, Contact Material Brass, End Type Taper Nose, Flange Height 2.27 in, Flange Shape Square, Flange Width 2.27 in, NEMA Enclosure Rating 3R, Standards CSA, UL, Terminal Connection Type Threaded Stud, For Location Outdoor, Maximum Operating Temperature 185 Degrees F
