No Product Image Available

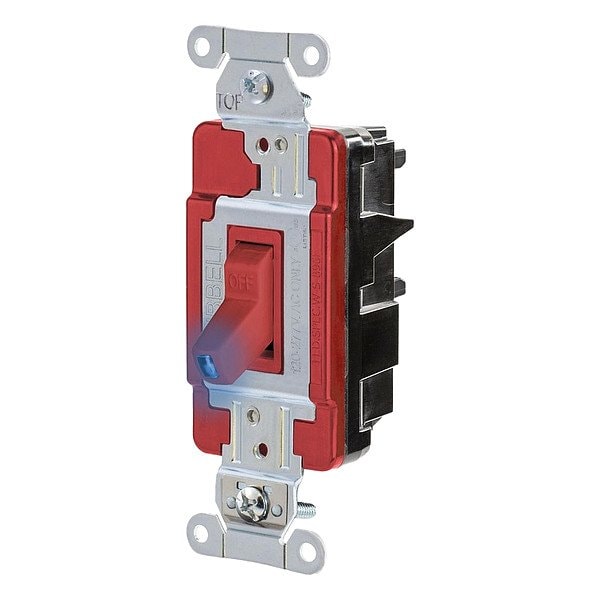

Wall Switch, 1 hp, Toggle, 20 A, Red

  • Mfr # HBL1221STILR

  • Zoro # G616437600

product price:  $61.55
/ea

Key Features

Switch Type
Single Pole
Switch Style
Toggle
Color
Red
Switch Function
Maintained
Wiring Method
Back
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL1221STILR
Zoro #
G616437600
UPC #
783585963952
Country of Origin
China

Dimensions

Overall Width
1.4 in
Maximum Wire Size
10 AWG
Switch Depth
1.5 in
Switch Height
4.2 in
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.3 in
Overall Height
4.2 in

Details

Item
Wall Switch
Switch Type
Single Pole
Switch Style
Toggle
Color
Red
Switch Function
Maintained
Wiring Method
Back
Features
Back Wired Screwless Termination for Faster Termination Time, No Need for Screwdriver and Torque Wrench, Spring Termination Eliminates Strand Relaxation, Strip Gauge for Accurate Wiring
Standards
CSA Certified, Fed Spec, UL Listed
Minimum Operating Temperature
-40 Degrees F
For Environment
Industrial
Strap Material
Brass
Market
Industrial
Maximum Operating Temperature
167 Degrees F
Voltage Rating
120/277V AC
Contact Material
Silver Alloy
Illuminated
Yes
Grounding
Grounded
Current Rating
20 A
Housing Material
Polycarbonate
Wire Connection Type
Spring Clamp Terminals
Horsepower Rating
1 hp
Number of Switches
1
Nightlight
No
Pilot Light
No
Resistance Properties
Impact Resistant

Description

SP TOG, IND, ST, 20A 120/277V, IL, RD
