No Product Image Available

Plugs and Receptacles

  • Mfr # 2325

  • Zoro # G522586638

product price:  $32.69
/ea

Key Features

Current Rating
20 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Wire Connection Type
Screw Terminals
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2325
Zoro #
G522586638
UPC #
-
Country of Origin
Mexico

Dimensions

Face Diameter
2.87 in
Maximum Wire Size
10 AWG
Flange Diameter
2.87 in
Minimum Wire Size
18 AWG
Flange Width
3.8 in
Overall Depth
2.06 in

Details

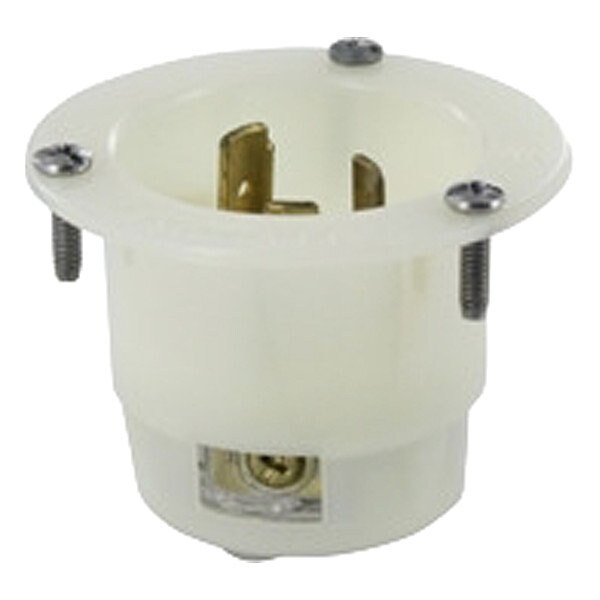

Item
Locking Inlet
Current Rating
20 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
White
Mount Type
Flush
Cover Type
No Cover
Flange Type
Flanged
Standards
ANSI C73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, NOM 057, UL 498 File E13393, UL Fed Spec WC-596 File E13393
Resistance Properties
Chemical Resistant, Impact Resistant, Self-Extinguishing Material
Connection Orientation
Straight
For Environment
Industrial
Flange Shape
Round
Number of Outlets
1
IP Rating
Not Rated
Includes
None
NEMA Plug Configuration
L6-20P
Midget Locking
No
Maximum Operating Temperature
60 Degrees C
Grade
Federal Specification
Flange Material
Nylon
Blade Material
Brass
Features
VARI-SIZE(R) Insert Adjusts to Wide Range of Cord Sizes
Polarized
Yes
Minimum Operating Temperature
-40 Degrees C
Series
Insulgrip
Number of Gangs
1
Market
Industrial
Housing Material
Nylon
Horsepower Rating
2 hp
Shrouded
Yes
UL 94 Flammability Rating
V-2
NEMA Enclosure Rating
Not Rated
Number of Blades
3

Description

Locking Inlet, Cover Type No Cover, Current Rating 20 A, Flange Material Nylon, Flange Shape Round, Housing Color White, IP Rating Not Rated, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Plug Configuration L6-20P, Number of Blades 3, Number of Poles 2, Phase Single, Resistance Properties Chemical Resistant, Impact Resistant, Self-Extinguishing Material, Voltage Rating 250V AC, Wiring Style Standard, Face Diameter 2.87 in, Flange Diameter 2.87 in, Flange Type Flanged
