Shop LEVITON

Plugs and Receptacles

  • Mfr # 2743

  • Zoro # G222587799

product price:  $144.99
/ea
Free Shipping & Returns

Key Features

UL 94 Flammability Rating
HB
Horsepower Rating
1 hp
Maximum Wire Size
8 AWG
Resistance Properties
Chemical Resistant, Impact Resistant, UV/Sunlight Resistant
Grade
Federal Specification
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2743
Zoro #
G222587799
UPC #
-
Country of Origin
Mexico

Dimensions

Maximum Wire Size
8 AWG
For Minimum Cable Diameter
0.3 in
Minimum Wire Size
14 AWG
Overall Length
3.78 in
For Maximum Cable Diameter
0.72 in
Outside Diameter
2.23 in
Face Diameter
2.23 in
Wire Rope Length
3.78 in

Details

UL 94 Flammability Rating
HB
Horsepower Rating
1 hp
Resistance Properties
Chemical Resistant, Impact Resistant, UV/Sunlight Resistant
Grade
Federal Specification
Housing Material
Nylon
IP Rating
Not Rated
Item
Locking Connector
Maximum Operating Temperature
140 Degrees F
Housing Color
Black, White
NEMA Enclosure Rating
Not Rated
For Environment
Industrial
Number of Poles
3
Contact Material
Brass
Number of Wires
4
Phase
Single
Voltage Rating
600V AC
Shrouded
No
Minimum Operating Temperature
-40 Degrees F
Standards
ANSI C-73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, NOM 057, UL 498 File E13393, UL Fed Spec WC-596 File E13393
Features
One Piece Contacts Reduce Friction and Overheating
Wire Connection Type
Screw Terminals
NEMA Receptacle Configuration
L17-30R
Connection Orientation
Straight
Series
Insulgrip
Current Rating
30 A
Market
Industrial
Midget Locking
No
Power and Ground Indicating Light
No
Grounding
Grounded

Description

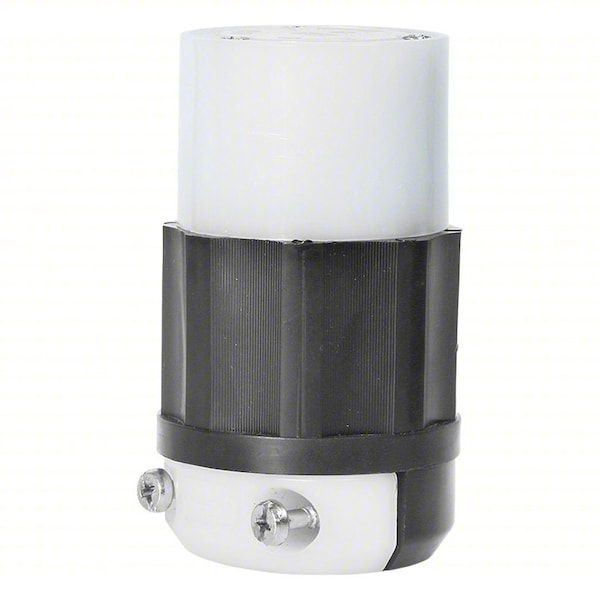

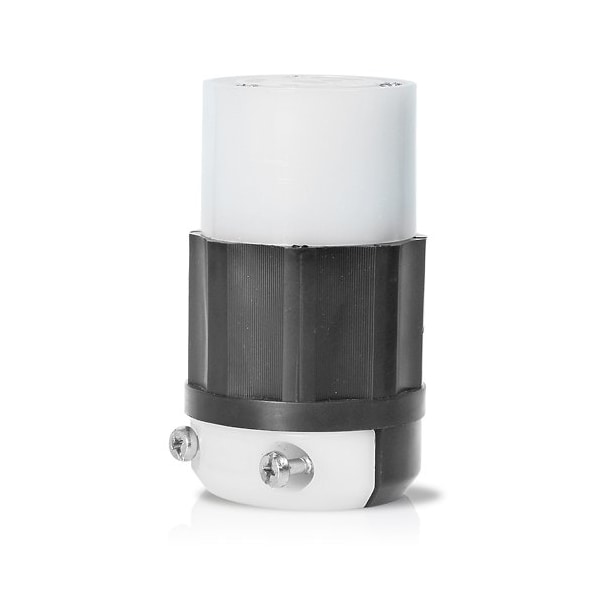

Locking Connector, Connection Orientation Straight, Current Rating 30 A, Housing Color Black, White, Housing Material Nylon, IP Rating Not Rated, NEMA Receptacle Configuration L17-30R, Number of Poles 3, Number of Wires 4, Phase Single, Resistance Properties Chemical Resistant, Impact Resistant, UV/Sunlight Resistant, Shrouded No, Voltage Rating 600V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Contact Material Brass, Face Diameter 2.23 in, For Maximum Cable Diameter 0.72 in
