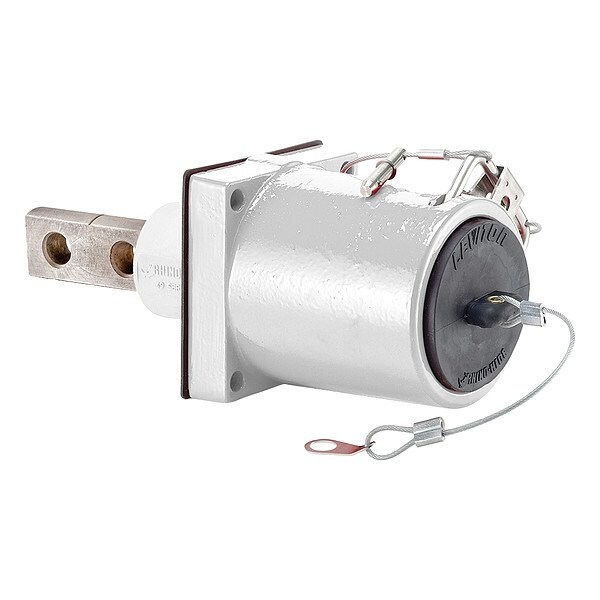

Plugs and Receptacles
Mfr # 49FR2-XW
Zoro # G322587040
product price:Â
$
1,234.99
/ea
Free Shipping & Returns
Key Features
Connection Orientation
Straight
Flange Width
4.49 in
Series
49
Voltage Rating
1000V AC, 1000V DC
Flange Height
4.49 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 49FR2-XW
- Zoro #
- G322587040
- UPC #
- 78477386644
- Country of Origin
- Mexico
Dimensions
- Flange Width
- 4.49 in
- Flange Height
- 4.49 in
- Maximum Wire Size
- 777 kcmil
- Overall Length
- 10.52 in
- Overall Width
- 4.49 in
- Minimum Wire Size
- 313 kcmil
- Wire Rope Length
- 10.52 in
Details
- Connection Orientation
- Straight
- Series
- 49
- Voltage Rating
- 1000V AC, 1000V DC
- Flange Shape
- Square
- Minimum Operating Temperature
- -76 Degrees F
- Item
- Single Pole Receptacle
- Housing Material
- Thermoplastic Elastomer
- Current Rating
- 1,135 A
- Housing Color
- White
- Terminal Connection Type
- Two-Hole Bus Bar
- Standards
- UL Recognized
- Gender
- Female
- Mounting Style
- Through Hole Mounting
- NEMA Enclosure Rating
- 3R
- Resistance Properties
- Corrosion Resistant
- End Type
- 45 Degrees Clevis Pin
- Maximum Operating Temperature
- 275 Degrees F
Description
Single Pole Receptacle, Connection Orientation Straight, Current Rating 1,135 A, Gender Female, Housing Color White, Housing Material Thermoplastic Elastomer, Maximum Wire Size 777 kcmil, Minimum Wire Size 313 kcmil, Voltage Rating 1000V AC, 1000V DC, End Type 45 Degrees Clevis Pin, Flange Height 4.49 in, Flange Shape Square, Flange Width 4.49 in, NEMA Enclosure Rating 3R, Standards UL Recognized, Terminal Connection Type Two-Hole Bus Bar, Maximum Operating Temperature 275 Degrees F
