Shop LEVITON

Plugs and Receptacles

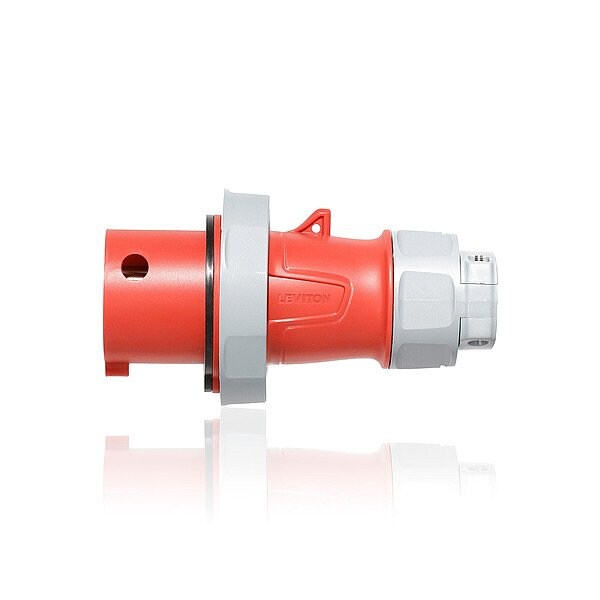

  • Mfr # 530P7WLEV

  • Zoro # G422588060

product price:  $405.99
/ea
Free Shipping & Returns

Key Features

Phase
Three
Number of Poles
4
Number of Wires
5
IP Rating
IP66, IP67, IP68, IP69K
Housing Color
Red
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
530P7WLEV
Zoro #
G422588060
UPC #
78477920848
Country of Origin
Mexico

Dimensions

Face Diameter
3.84 in
Minimum Wire Size
12 AWG
Overall Length
7 in
Outside Diameter
3.84 in
Maximum Wire Size
8 AWG

Details

Current Rating
30 A
Voltage Rating
277/480V AC
Phase
Three
Number of Poles
4
Number of Wires
5
IP Rating
IP66, IP67, IP68, IP69K
Housing Color
Red
Grounding
Grounded
Power Indicating Light
No
For Environment
Industrial
NEMA Enclosure Rating
12, 3R, 4X, 6P
For Location
Outdoor
Market
Industrial
Item
Pin and Sleeve Plug
Maximum Operating Temperature
60 Degrees C
Wire Connection Type
Screw Terminals
Hazardous Location Specification
Not Rated
Horsepower Rating
10 hp
Series
HBL
Standards
CSA, IEC 60309-1, IEC 60309-2, NOM-ANCE Requirements, NSF, UL 1682, UL 1686
UL 94 Flammability Rating
V-0
Reverse Service
No
Resistance Properties
Corrosion Resistant
Minimum Operating Temperature
-40 Degrees C
Housing Material
PBT
Features
Front Housing Features Screwless Assembly for Plugs and Connectors, Private Labeling Capabilities

Description

Pin and Sleeve Plug, Current Rating 30 A, Hazardous Location Specification Not Rated, Horsepower Rating 10 hp, Housing Color Red, IP Rating IP66, IP67, IP68, IP69K, Number of Poles 4, Number of Wires 5, Phase Three, Voltage Rating 277/480V AC, Wire Connection Type Screw Terminals, Face Diameter 3.84 in, Grounding Grounded, Grounding Style IEC, Housing Material PBT, Maximum Wire Size 8 AWG, Minimum Wire Size 12 AWG, NEMA Enclosure Rating 12, 3R, 4X, 6P, Outside Diameter 3.84 in
