Shop LEVITON

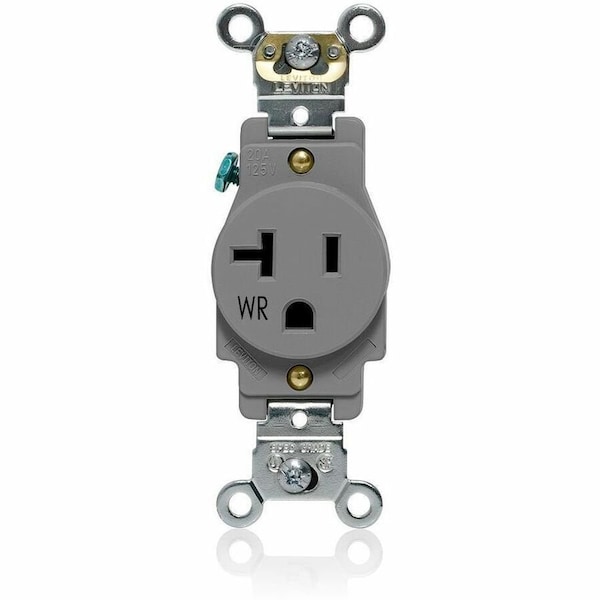

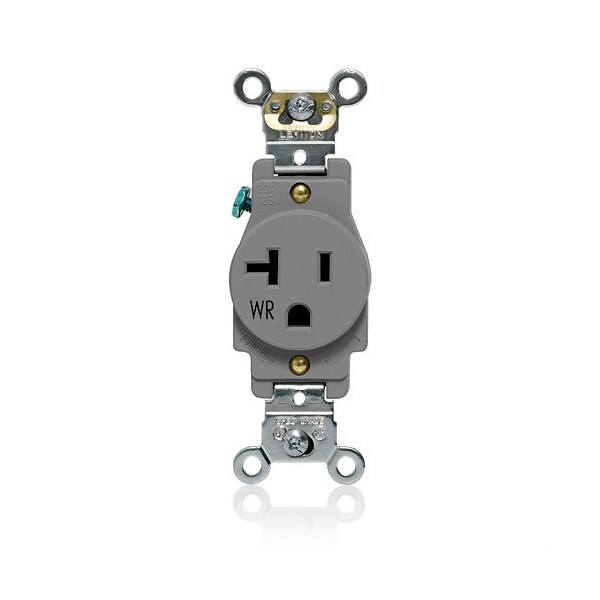

PlugsandRcptcls, 20A, 125VAC, Gry, Nylon, PK1

  • Mfr # W5361-GY

  • Zoro # G522587123

product price:
$
248.99
/pk of 10, $24.90/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

For Environment
Food and Beverage, Oily/Greasy
Overall Depth
1.1 in
Number of Wires
3
Receptacle Type
Single
Connection Orientation
Straight
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
W5361-GY
Zoro #
G522587123
UPC #
78477981160
Country of Origin
Mexico

Dimensions

Overall Depth
1.1 in
Maximum Wire Size
10 AWG
Face Plate Height
2.4 in
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.3 in

Details

For Environment
Food and Beverage, Oily/Greasy
Number of Wires
3
Receptacle Type
Single
Connection Orientation
Straight
NEMA Receptacle Configuration
5-20R
Standards
CSA, FULS Marking, UL
Grade
General Use
Features
Smooth Face
Housing Color
Gray
Wire Connection Type
Screw Terminals
Cover Type
No Cover
Mount Type
Flush
Number of Poles
2
Resistance Properties
Weather Resistant
Phase
Single
GFCI
No
Housing Material
Nylon
Grounding
Grounded
AFCI
No
Current Rating
20 A
Number of Outlets
1
Item
Plugs and Receptacles
Maximum Operating Temperature
75 Degrees C
UL 94 Flammability Rating
V-2
Contact Material
Brass
Shrouded
No
Horsepower Rating
1 hp
Number of Wall Plates Included
0
Voltage Rating
125V AC
Flange Type
Non-Flanged
Wiring Method
Back/Side
IP Rating
Not Rated
NEMA Enclosure Rating
Not Rated
Surge Protection
No
Number of Gangs
1
Polarized
Yes
Market
Industrial
Minimum Operating Temperature
-40 Degrees C

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Gray, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Single, Resistance Properties Weather Resistant, Standards CSA, FULS Marking, UL
