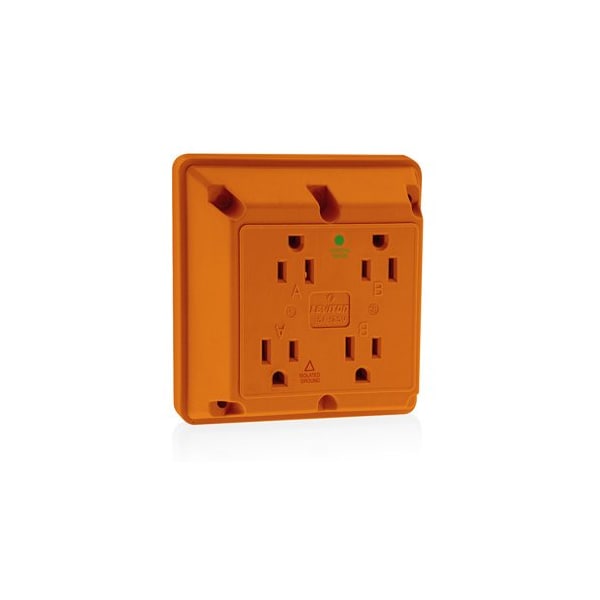

PlugsandReceptacles, 15A, 125VAC, Org, Nylon

  • Mfr # 1254-IG

  • Zoro # G522586959

product price:
$
66.19
/ea

Key Features

Surge Protection
No
Phase
Single
NEMA Receptacle Configuration
5-15R
Polarized
Yes
Overall Depth
1.2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1254-IG
Zoro #
G522586959
UPC #
78477830529
Country of Origin
Mexico

Dimensions

Overall Depth
1.2 in
Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
12 AWG
Mount Hole Center-to-Center Width
3.4 in
Face Plate Width
4.5 in
Minimum Wire Size
14 AWG

Details

Surge Protection
No
Phase
Single
NEMA Receptacle Configuration
5-15R
Polarized
Yes
Standards
CSA, FULS Marking, UL
IP Rating
Not Rated
Mount Type
Surface
Features
4-in-1 Isolated Ground Quadruplex Receptacle Outlet
GFCI
No
Resistance Properties
Chemical Resistant, Impact Resistant
Number of Outlets
4
Cover Type
No Cover
Voltage Rating
125V AC
Wiring Method
Side
Number of Gangs
2
Receptacle Type
Quad
Flange Type
Non-Flanged
Shrouded
No
Horsepower Rating
1/2 hp
Number of Wires
3
Current Rating
15 A
Contact Material
Phosphor Bronze
For Environment
Food and Beverage, Oily/Greasy
NEMA Enclosure Rating
Not Rated
AFCI
No
Minimum Operating Temperature
-40 Degrees C
Number of Poles
2
Housing Color
Orange
Grade
Hospital Grade
Wire Connection Type
Screw Terminals
Market
Commercial
Maximum Operating Temperature
60 Degrees C
Item
Plugs and Receptacles
Number of Wall Plates Included
0
UL 94 Flammability Rating
V-2
Connection Orientation
Straight
Housing Material
Nylon
Grounding
Grounded

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Orange, Housing Material Nylon, Mount Type Surface, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Gangs 2, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Quad, Resistance Properties Chemical Resistant, Impact Resistant
