Shop LEVITON

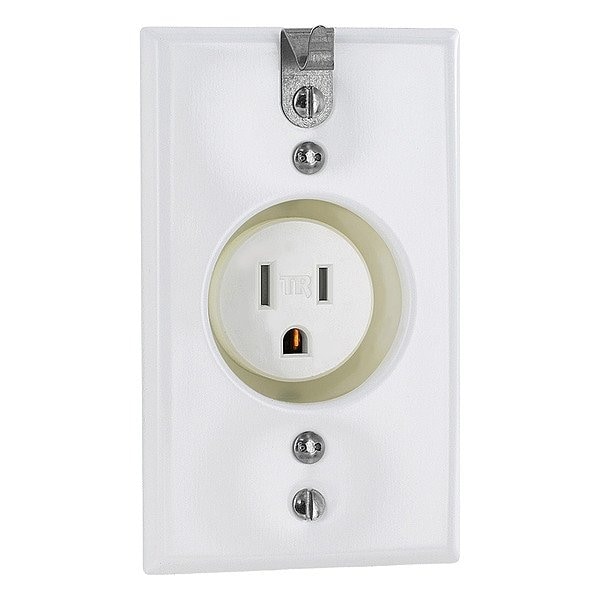

PlugsandReceptacles, 15A, 125VAC, Wht, Nylon

  • Mfr # T5015-CHW

  • Zoro # G622587511

product price:
$
30.59
/ea

Key Features

Connection Orientation
Straight
IP Rating
Not Rated
Market
Commercial
For Environment
Food and Beverage, Oily/Greasy
Housing Color
White
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
T5015-CHW
Zoro #
G622587511
UPC #
78477703489
Country of Origin
Mexico

Dimensions

Minimum Wire Size
14 AWG
Overall Depth
1.6 in
Face Plate Height
4.5 in
Flange Width
4.5 in
Maximum Wire Size
10 AWG
Face Plate Width
2.8 in
Mount Hole Center-to-Center Height
3.3 in

Details

Connection Orientation
Straight
IP Rating
Not Rated
Market
Commercial
For Environment
Food and Beverage, Oily/Greasy
Housing Color
White
Minimum Operating Temperature
-40 Degrees C
Number of Outlets
1
Phase
Single
Contact Material
Brass
Housing Material
Nylon
Polarized
Yes
Cover Type
No Cover
Horsepower Rating
1/2 hp
Wiring Method
Back/Side
NEMA Receptacle Configuration
5-15R
Number of Wall Plates Included
0
Grade
General Use
Features
Smooth Face
Wire Connection Type
Screw Terminals
Maximum Operating Temperature
75 Degrees C
Surge Protection
No
Flange Type
Flanged
Number of Wires
3
Mount Type
Flush
Shrouded
No
GFCI
No
Number of Gangs
1
Number of Poles
2
Standards
CSA, FULS Marking, UL
AFCI
No
Current Rating
15 A
Flange Shape
Rectangular
Item
Plugs and Receptacles
NEMA Enclosure Rating
Not Rated
Voltage Rating
125V AC
Receptacle Type
Single
Grounding
Grounded
Resistance Properties
Tamper Resistant

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Single, Resistance Properties Tamper Resistant, Standards CSA, FULS Marking, UL
