Shop LEVITON

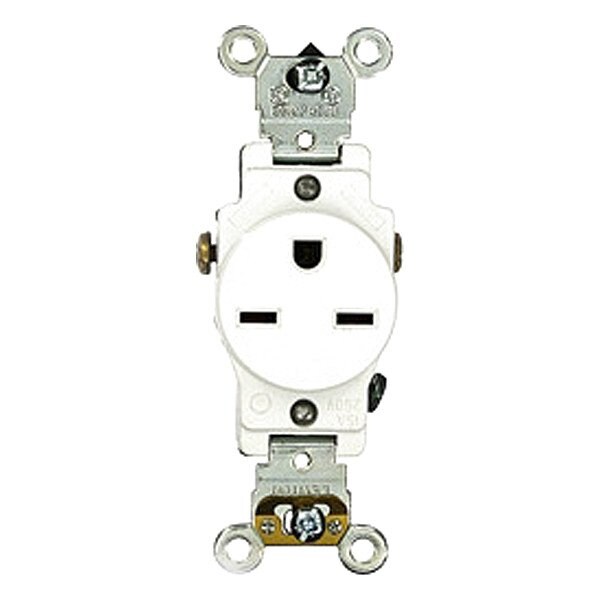

PlugsandReceptacles, 15A, 250VAC, Wht, Nylon

  • Mfr # 5651-W

  • Zoro # G822586949

product price:
$
7.75
/ea

Key Features

NEMA Enclosure Rating
Not Rated
Grounding
Grounded
Phase
Single
Receptacle Type
Single
Number of Wires
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5651-W
Zoro #
G822586949
UPC #
78477833902
Country of Origin
Mexico

Dimensions

Overall Depth
1.1 in
Face Plate Height
2.4 in
Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.3 in

Details

NEMA Enclosure Rating
Not Rated
Grounding
Grounded
Phase
Single
Receptacle Type
Single
Number of Wires
3
Contact Material
Phosphor Bronze
UL 94 Flammability Rating
V-2
Housing Material
Nylon
Shrouded
No
For Environment
Food and Beverage, Oily/Greasy
Grade
Federal Specification
Wiring Method
Side
Maximum Operating Temperature
60 Degrees C
Housing Color
White
Resistance Properties
Impact Resistant
Current Rating
15 A
Number of Gangs
1
Number of Outlets
1
Voltage Rating
250V AC
Connection Orientation
Straight
Market
Industrial
Features
Straight Blade
NEMA Receptacle Configuration
6-15R
Cover Type
No Cover
Flange Type
Non-Flanged
Surge Protection
No
Wire Connection Type
Screw Terminals
Polarized
Yes
GFCI
No
Minimum Operating Temperature
-40 Degrees C
Number of Wall Plates Included
0
Horsepower Rating
1 1/2 hp
IP Rating
Not Rated
Item
Plugs and Receptacles
Mount Type
Flush
Number of Poles
2
AFCI
No
Standards
CSA, FULS Marking, UL

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 6-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Single, Resistance Properties Impact Resistant, Standards CSA, FULS Marking, UL
