Shop LEVITON

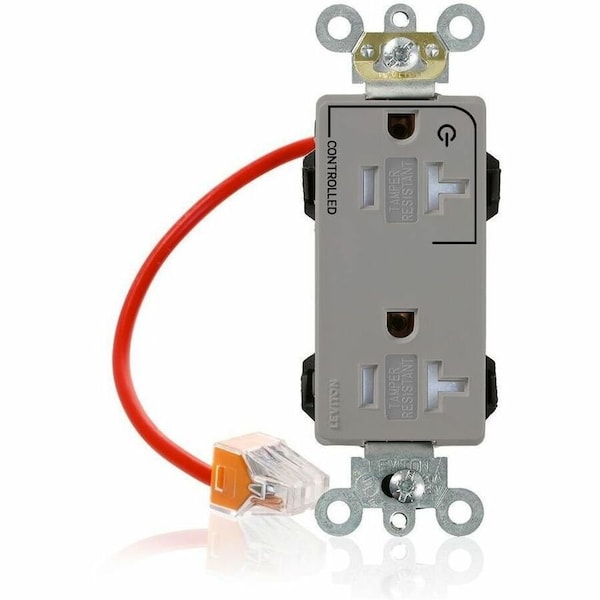

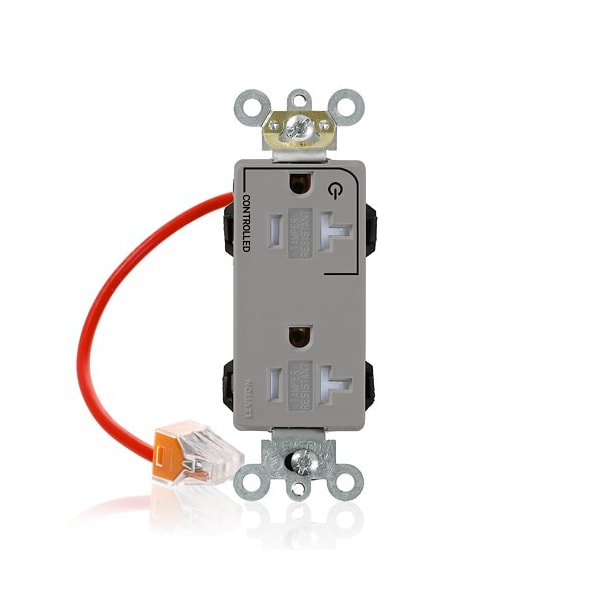

PlugsandReceptacles, 20A, 125VAC, Gry, Nylon

  • Mfr # MT163-1CG

  • Zoro # G722586360

product price:
$
25.99
/ea

Key Features

Overall Depth
1.2 in
Wiring Method
Back
Number of Gangs
1
Standards
CSA, FULS Marking, UL
Grade
General Use
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MT163-1CG
Zoro #
G722586360
UPC #
78477740385
Country of Origin
Mexico

Dimensions

Overall Depth
1.2 in
Face Plate Height
2.6 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.3 in

Details

Wiring Method
Back
Number of Gangs
1
Standards
CSA, FULS Marking, UL
Grade
General Use
Cover Type
No Cover
Number of Poles
2
Shrouded
No
GFCI
No
Maximum Operating Temperature
60 Degrees C
Item
Plugs and Receptacles
Resistance Properties
Tamper Resistant
AFCI
No
Horsepower Rating
1 hp
Flange Type
Non-Flanged
Housing Color
Gray
Wire Connection Type
Snap-In Module
Connection Orientation
Straight
Voltage Rating
125V AC
Number of Wires
3
NEMA Enclosure Rating
Not Rated
Contact Material
Brass
Housing Material
Nylon
Number of Outlets
2
Current Rating
20 A
Surge Protection
No
Phase
Single
Polarized
Yes
For Environment
Food and Beverage, Oily/Greasy
UL 94 Flammability Rating
V-2
Features
Smooth Face
Market
Industrial
Grounding
Grounded
Receptacle Type
Duplex
Mount Type
Flush
Minimum Operating Temperature
-40 Degrees C
IP Rating
Not Rated
NEMA Receptacle Configuration
5-20R
Number of Wall Plates Included
0

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Gray, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards CSA, FULS Marking, UL
