Shop LEVITON

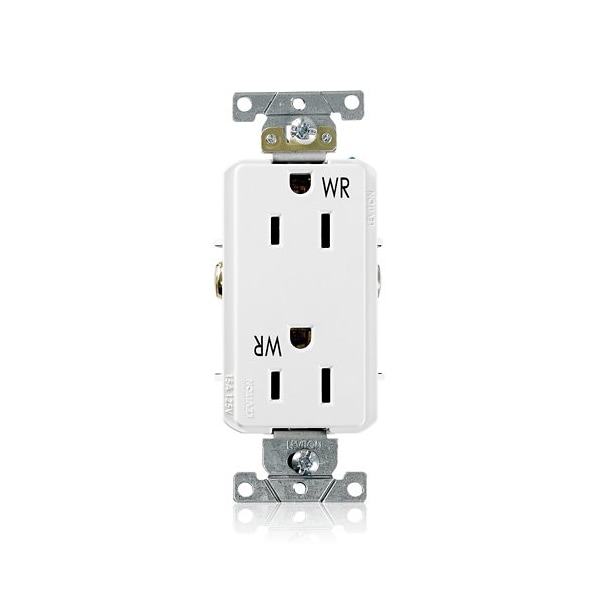

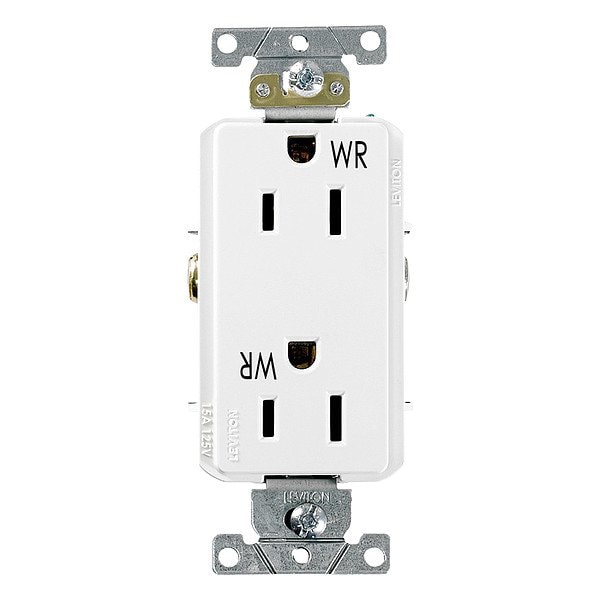

Plugs&Rcptcls, 15A, 125VAC, Wht, PBT, PK1

  • Mfr # WDR15-W

  • Zoro # G622588020

product price:
$
198.99
/pk of 10, $19.90/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Housing Color
White
Voltage Rating
125V AC
Market
Industrial
Number of Outlets
2
For Environment
Food and Beverage, Oily/Greasy
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
WDR15-W
Zoro #
G622588020
UPC #
78477892428
Country of Origin
Mexico

Dimensions

Face Plate Width
1.6 in
Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1.1 in
Face Plate Height
2.6 in
Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG

Details

Housing Color
White
Voltage Rating
125V AC
Market
Industrial
Number of Outlets
2
For Environment
Food and Beverage, Oily/Greasy
Resistance Properties
Weather Resistant
Connection Orientation
Straight
Number of Wires
3
IP Rating
Not Rated
Standards
CSA, FULS Marking, UL
Minimum Operating Temperature
-40 Degrees C
NEMA Enclosure Rating
Not Rated
Number of Gangs
1
Maximum Operating Temperature
75 Degrees C
Flange Type
Non-Flanged
Mount Type
Flush
Item
Plugs and Receptacles
Receptacle Type
Duplex
Shrouded
No
Phase
Single
Horsepower Rating
1/2 hp
GFCI
No
Surge Protection
No
Number of Wall Plates Included
0
Polarized
Yes
Wiring Method
Back/Side
Current Rating
15 A
Wire Connection Type
Screw Terminals
Features
Smooth Face
Number of Poles
2
NEMA Receptacle Configuration
5-15R
UL 94 Flammability Rating
V-0
AFCI
No
Housing Material
PBT Polyester
Grounding
Grounded
Grade
General Use
Contact Material
Phosphor Bronze
Cover Type
No Cover

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material PBT Polyester, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Weather Resistant, Standards CSA, FULS Marking, UL
