Shop LEVITON

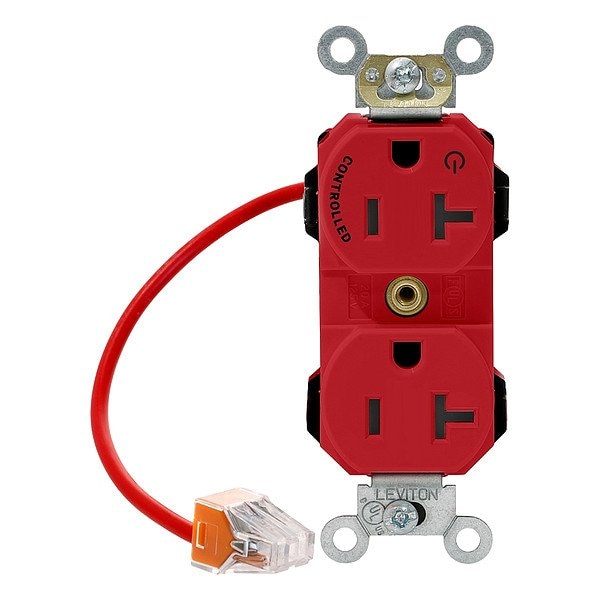

PlugsandReceptacles, 20A, 125VAC, Red, Nylon

  • Mfr # M5362-1CR

  • Zoro # G222586358

product price:
$
21.69
/ea

Key Features

Wiring Method
Back
For Environment
Food and Beverage, Oily/Greasy
Polarized
Yes
Surge Protection
No
Number of Outlets
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
M5362-1CR
Zoro #
G222586358
UPC #
78477740101
Country of Origin
Mexico

Dimensions

Mount Hole Center-to-Center Height
3.3 in

Details

Wiring Method
Back
For Environment
Food and Beverage, Oily/Greasy
Polarized
Yes
Surge Protection
No
Number of Outlets
2
Housing Color
Red
Standards
CSA, FULS Marking, UL
Phase
Single
Number of Wall Plates Included
0
Minimum Operating Temperature
-40 Degrees C
AFCI
No
Grade
General Use
GFCI
No
Grounding
Grounded
Current Rating
20 A
Contact Material
Brass
NEMA Enclosure Rating
Not Rated
Flange Type
Non-Flanged
Horsepower Rating
1 hp
Number of Poles
2
Item
Plugs and Receptacles
IP Rating
Not Rated
Wire Connection Type
Snap-In Module
Receptacle Type
Duplex
Cover Type
No Cover
Connection Orientation
Straight
Housing Material
Nylon
Voltage Rating
125V AC
Number of Wires
3
Maximum Operating Temperature
60 Degrees C
Number of Gangs
1
Shrouded
No
NEMA Receptacle Configuration
5-20R
Mount Type
Flush
Features
Smooth Face, Split-Circuit, One Outlet Marked "Controlled"
Market
Industrial

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Red, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable, Standards CSA, FULS Marking, UL
