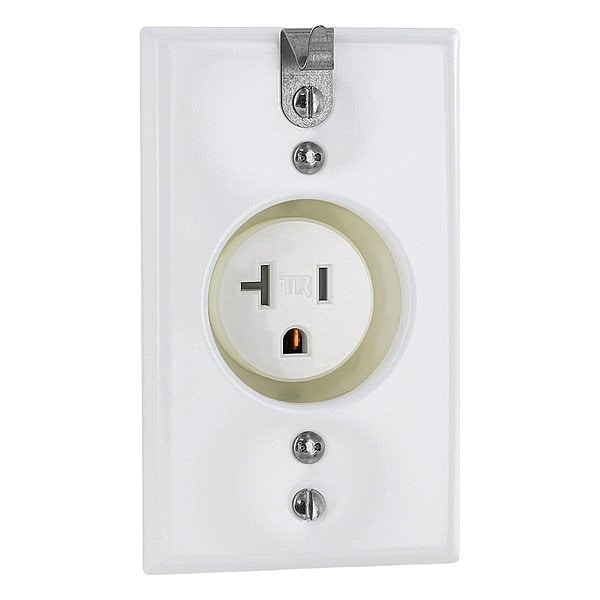

PlugsandReceptacles, 20A, 125VAC, Wht, Nylon

  • Mfr # T5020-CHW

  • Zoro # G222587096

product price:
$
37.65
/ea

Key Features

Surge Protection
No
Market
Commercial
NEMA Receptacle Configuration
5-20R
Contact Material
Brass
Face Plate Height
4.5 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
T5020-CHW
Zoro #
G222587096
UPC #
78477703427
Country of Origin
Mexico

Dimensions

Face Plate Height
4.5 in
Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
2.8 in
Overall Depth
1.6 in
Minimum Wire Size
14 AWG

Details

Surge Protection
No
Market
Commercial
NEMA Receptacle Configuration
5-20R
Contact Material
Brass
Housing Color
White
Maximum Operating Temperature
75 Degrees C
Features
Smooth Face
Item
Plugs and Receptacles
NEMA Enclosure Rating
Not Rated
Standards
CSA, FULS Marking, UL
Flange Type
Non-Flanged
Number of Outlets
1
Number of Wall Plates Included
0
Receptacle Type
Single
For Environment
Food and Beverage, Oily/Greasy
Voltage Rating
125V AC
Wire Connection Type
Screw Terminals
Housing Material
Nylon
GFCI
No
Phase
Single
Grounding
Grounded
Number of Gangs
1
Minimum Operating Temperature
-40 Degrees C
Number of Poles
2
Connection Orientation
Straight
Mount Type
Flush
Shrouded
No
Current Rating
20 A
Cover Type
No Cover
Grade
General Use
IP Rating
Not Rated
Resistance Properties
Tamper Resistant
Number of Wires
3
AFCI
No
Wiring Method
Back/Side
Polarized
Yes
Horsepower Rating
1 hp

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Single, Resistance Properties Tamper Resistant, Standards CSA, FULS Marking, UL
