Shop LEVITON

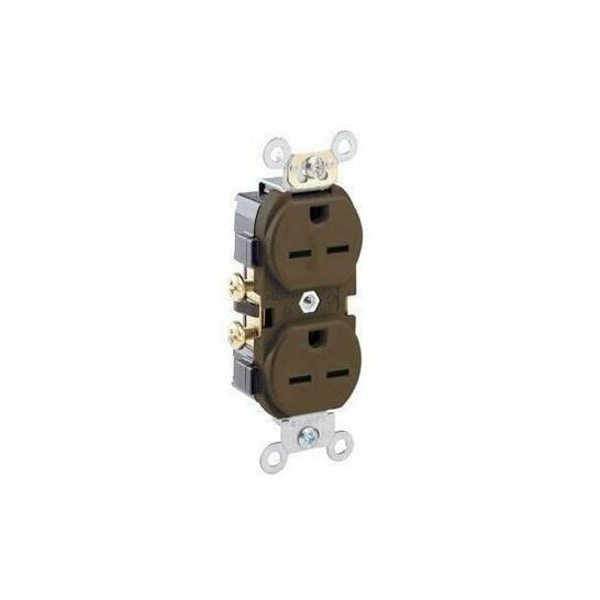

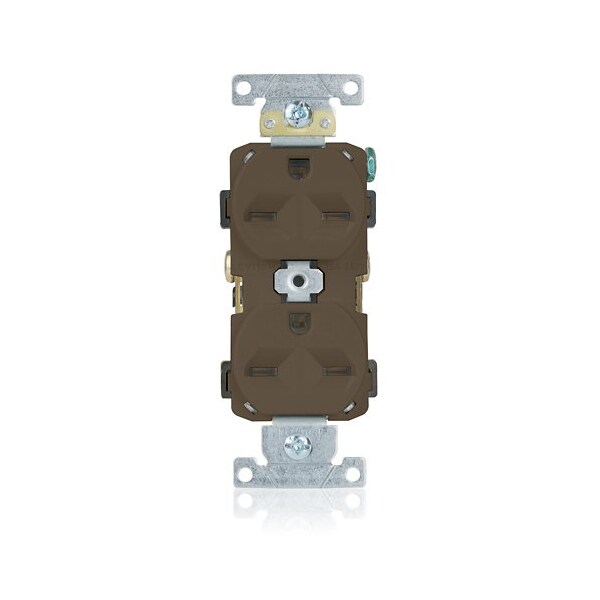

Plugs&Rcptcls, 15A, 250VAC, Brn, Plyprpyln

  • Mfr # 5028

  • Zoro # G022588019

product price:
$
5.75
/ea

Key Features

Maximum Wire Size
10 AWG
IP Rating
Not Rated
NEMA Enclosure Rating
Not Rated
Overall Depth
1.1 in
Mount Hole Center-to-Center Height
3.3 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5028
Zoro #
G022588019
UPC #
-
Country of Origin
United States

Dimensions

Maximum Wire Size
10 AWG
Overall Depth
1.1 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Height
2.8 in
Minimum Wire Size
14 AWG
Face Plate Width
1.6 in

Details

IP Rating
Not Rated
NEMA Enclosure Rating
Not Rated
Contact Material
Brass
Receptacle Type
Duplex
Grounding
Grounded
Number of Outlets
2
For Environment
Food and Beverage, Oily/Greasy
Housing Color
Brown
NEMA Receptacle Configuration
6-15R
GFCI
No
Cover Type
No Cover
Shrouded
No
UL 94 Flammability Rating
V-2
Grade
General Use
Market
Commercial
AFCI
No
Standards
CSA, FULS Marking, UL
Phase
Single
Current Rating
15 A
Surge Protection
No
Maximum Operating Temperature
60 Degrees C
Item
Plugs and Receptacles
Number of Gangs
1
Voltage Rating
250V AC
Number of Wall Plates Included
0
Number of Wires
3
Number of Poles
2
Housing Material
Polypropylene
Minimum Operating Temperature
-40 Degrees C
Horsepower Rating
1 1/2 hp
Flange Type
Non-Flanged
Features
Indented Face
Mount Type
Flush
Wire Connection Type
Screw Terminals
Resistance Properties
Tamper Resistant
Polarized
Yes
Wiring Method
Side
Connection Orientation
Straight

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Brown, Housing Material Polypropylene, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 6-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards CSA, FULS Marking, UL
