Shop LEVITON

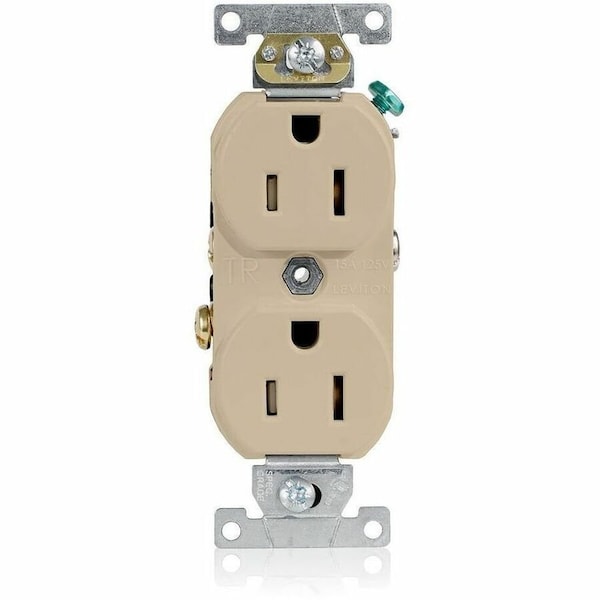

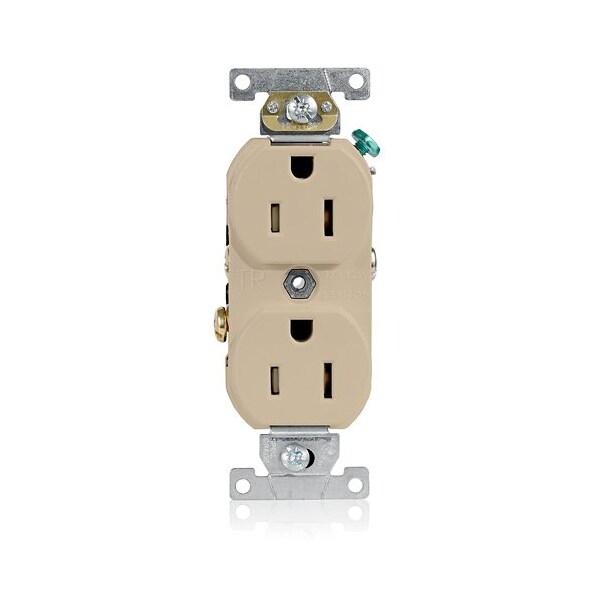

Plugs&Rcptcls, 15A, 125VAC, Ivory, Thrmplstc

  • Mfr # TCR15-I

  • Zoro # G222586624

product price:
$
6.59
/ea
Zoro's best price: not eligible for any other offers or promotions

Key Features

Mount Type
Flush
NEMA Receptacle Configuration
5-15R
Surge Protection
No
Overall Depth
1.2 in
GFCI
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TCR15-I
Zoro #
G222586624
UPC #
78477655405
Country of Origin
Mexico

Dimensions

Overall Depth
1.2 in
Face Plate Width
1.4 in
Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Face Plate Height
2.8 in
Mount Hole Center-to-Center Height
3.3 in

Details

Mount Type
Flush
NEMA Receptacle Configuration
5-15R
Surge Protection
No
GFCI
No
Voltage Rating
125V AC
Grade
General Use
Number of Poles
2
AFCI
No
Contact Material
Brass
Horsepower Rating
1/2 hp
Number of Outlets
2
Resistance Properties
Tamper Resistant
Current Rating
15 A
Wire Connection Type
Screw Terminals
Maximum Operating Temperature
60 Degrees C
NEMA Enclosure Rating
Not Rated
Shrouded
No
Wiring Method
Side
Cover Type
No Cover
For Environment
Food and Beverage, Oily/Greasy
Phase
Single
Number of Gangs
1
Standards
CSA, FULS Marking, UL
Housing Color
Ivory
UL 94 Flammability Rating
V-2
Grounding
Grounded
Housing Material
Thermoplastic
Connection Orientation
Straight
Item
Plugs and Receptacles
Market
Commercial
Receptacle Type
Duplex
Features
Smooth Face
Minimum Operating Temperature
-40 Degrees C
IP Rating
Not Rated
Number of Wall Plates Included
0
Polarized
Yes
Flange Type
Non-Flanged
Number of Wires
3

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Ivory, Housing Material Thermoplastic, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards CSA, FULS Marking, UL
