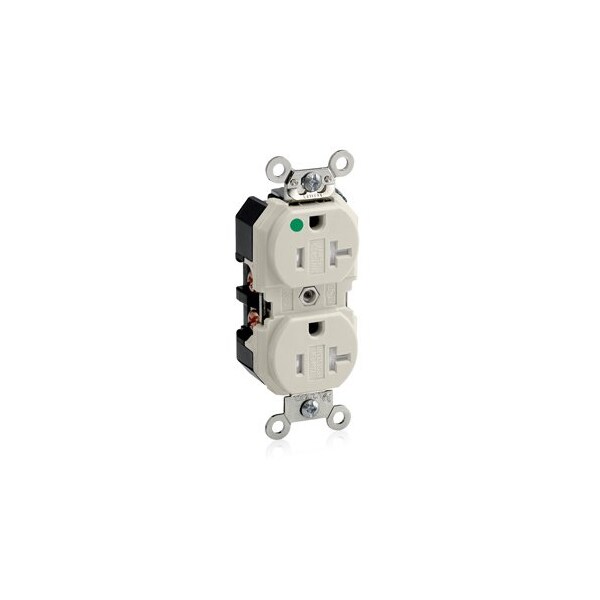

Plugs&Rcptcls, 20A, 125VAC, Almnd, Nylon

  • Mfr # 8300-SGT

  • Zoro # G722587145

product price:
$
18.39
/ea

Key Features

Mount Type
Flush
Number of Wall Plates Included
0
Mount Hole Center-to-Center Height
3.3 in
Surge Protection
No
IP Rating
Not Rated
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
8300-SGT
Zoro #
G722587145
UPC #
78477321614
Country of Origin
Mexico

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG

Details

Mount Type
Flush
Number of Wall Plates Included
0
Surge Protection
No
IP Rating
Not Rated
Number of Gangs
1
Voltage Rating
125V AC
Number of Outlets
2
Shrouded
No
Standards
CSA, FULS Marking, UL
Grade
Hospital Grade
NEMA Receptacle Configuration
5-20R
AFCI
No
Grounding
Grounded
Wiring Method
Back/Side
Phase
Single
Maximum Operating Temperature
60 Degrees C
Contact Material
Nickel-Plated Brass
Features
Smooth Face
Market
Commercial
Polarized
Yes
Cover Type
No Cover
GFCI
No
NEMA Enclosure Rating
Not Rated
Receptacle Type
Duplex
Minimum Operating Temperature
-40 Degrees C
Housing Material
Nylon
For Environment
Food and Beverage, Oily/Greasy
Housing Color
Light Almond
Connection Orientation
Straight
Number of Poles
2
Horsepower Rating
1 hp
Number of Wires
3
Flange Type
Non-Flanged
Current Rating
20 A
Resistance Properties
Tamper Resistant
Item
Plugs and Receptacles
Wire Connection Type
Screw Terminals

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Light Almond, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards CSA, FULS Marking, UL
