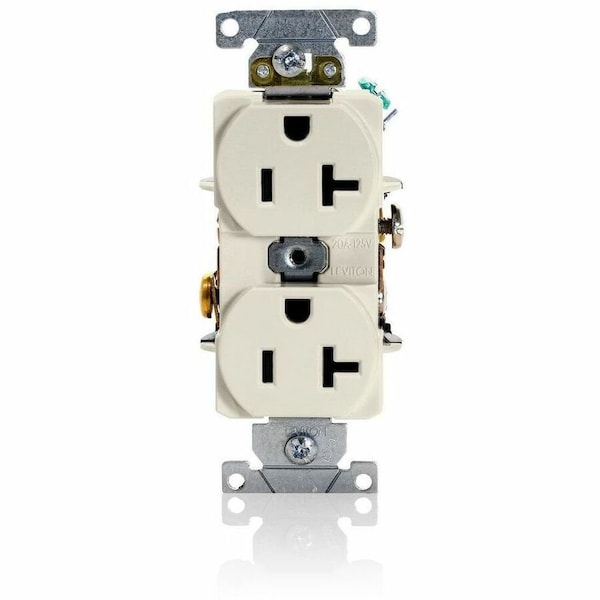

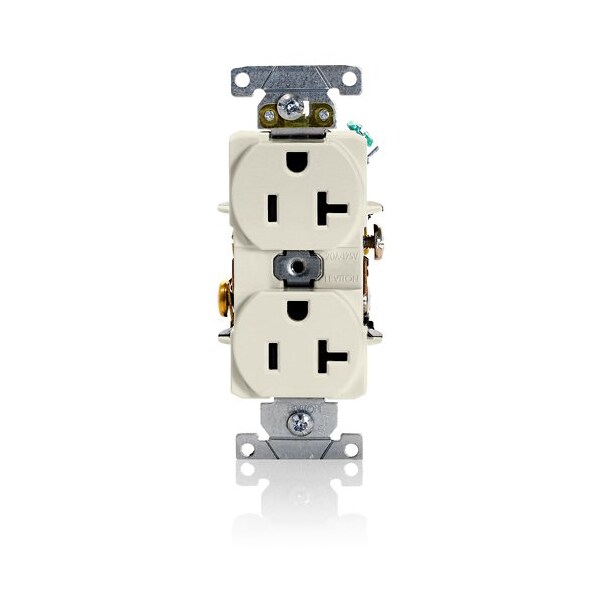

Receptacle Outlet, 20A, Light Almond, 125V
- Mfr # 5362-ST
- Zoro # G922982108
product price:Â
$
5.15
/ea
Key Features
Maximum Operating Temperature
75 Degrees C
Wire Connection Type
Screw Terminals
Resistance Properties
Impact Resistant
Minimum Wire Size
14 AWG
Voltage Rating
125V AC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 5362-ST
- Zoro #
- G922982108
- UPC #
- 078477271032
- Country of Origin
- Mexico
- Maximum Operating Temperature
- 75 Degrees C
- Wire Connection Type
- Screw Terminals
- Resistance Properties
- Impact Resistant
- Voltage Rating
- 125V AC
- Item
- Duplex Receptacle Outlet
- Grounding
- Grounded
- Number of Wires
- 3
- Receptacle Type
- Duplex
- Contact Material
- Phosphor Bronze
- Number of Outlets
- 2
- Wiring Method
- Back/Side
- Housing Color
- Light Almond
- Number of Poles
- 2
- UL 94 Flammability Rating
- V-2
- Minimum Operating Temperature
- -40 Degrees C
- Current Rating
- 20 A
- NEMA Receptacle Configuration
- 5-20R
- Horsepower Rating
- 1 hp
- Features
- Smooth Face
- Standards
- CSA, FULS Marking, UL
- For Environment
- Food and Beverage, Oily/Greasy
- Housing Material
- PBT Polyester
- Connection Orientation
- Straight
- Market
- Industrial
Dimensions
- Minimum Wire Size
- 14 AWG
- Maximum Wire Size
- 10 AWG
- Overall Depth
- 1.1 in
- Face Plate Width
- 1.4 in
- Mount Hole Center-to-Center Height
- 3.3 in
- Face Plate Height
- 2.8 in
- Fits Chest Size
- Smooth Face
Description
Duplex Receptacle Outlet, Connection Orientation Straight, Current Rating 20 A, Grounding Grounded, Housing Color Light Almond, Housing Material PBT Polyester, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Receptacle Type Duplex, Resistance Properties Impact Resistant, Standards CSA, FULS Marking, UL, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back/Side, Horsepower Rating 1 hp, UL 94 Flammability Rating V-2
