Shop LEVITON

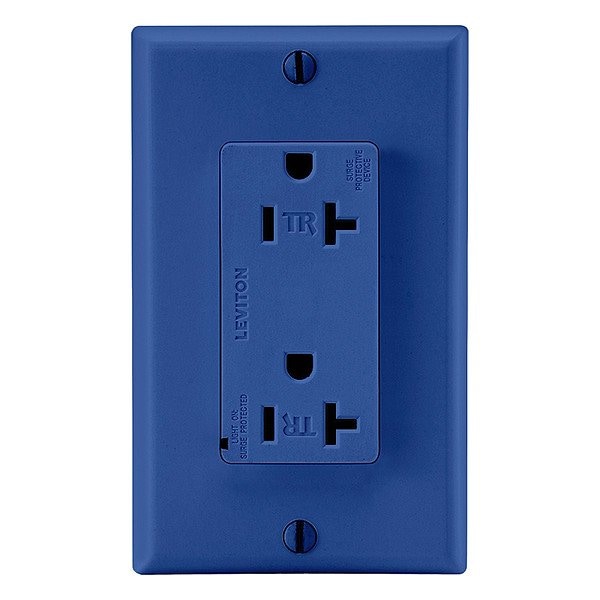

Plugs&Rcptcls, 20A, 125VAC, Bl, Polycarb

  • Mfr # T5380-B

  • Zoro # G422586349

product price:
$
85.15
/ea

Key Features

NEMA Receptacle Configuration
5-20R
Number of Gangs
1
Horsepower Rating
1 hp
AFCI
No
Grounding
Grounded
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
T5380-B
Zoro #
G422586349
UPC #
78477434406
Country of Origin
Mexico

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG

Details

NEMA Receptacle Configuration
5-20R
Number of Gangs
1
Horsepower Rating
1 hp
AFCI
No
Grounding
Grounded
Includes
Wallplate
Number of Wall Plates Included
0
Polarized
Yes
Surge Protection
No
For Environment
Food and Beverage, Oily/Greasy
Wire Connection Type
Screw Terminals
Receptacle Type
Duplex
Phase
Single
Minimum Operating Temperature
-40 Degrees C
Number of Poles
2
Connection Orientation
Straight
Features
Indicator Light
Flange Type
Non-Flanged
Number of Outlets
2
Wiring Method
Back/Side
Resistance Properties
Tamper Resistant
Current Rating
20 A
NEMA Enclosure Rating
Not Rated
Number of Wires
3
Contact Material
Brass
Voltage Rating
125V AC
Shrouded
No
Mount Type
Flush
Standards
CSA, FULS Marking, UL
Maximum Surge Current
27 kA
IP Rating
Not Rated
Market
Commercial
Housing Color
Blue
Maximum Operating Temperature
60 Degrees C
GFCI
No
Item
Plugs and Receptacles
Grade
General Use
Cover Type
No Cover
Housing Material
Polycarbonate

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Blue, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards CSA, FULS Marking, UL
