Shop LEVITON

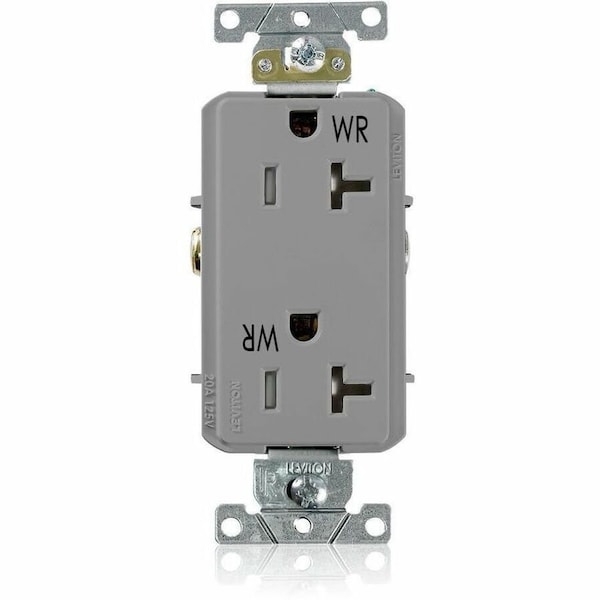

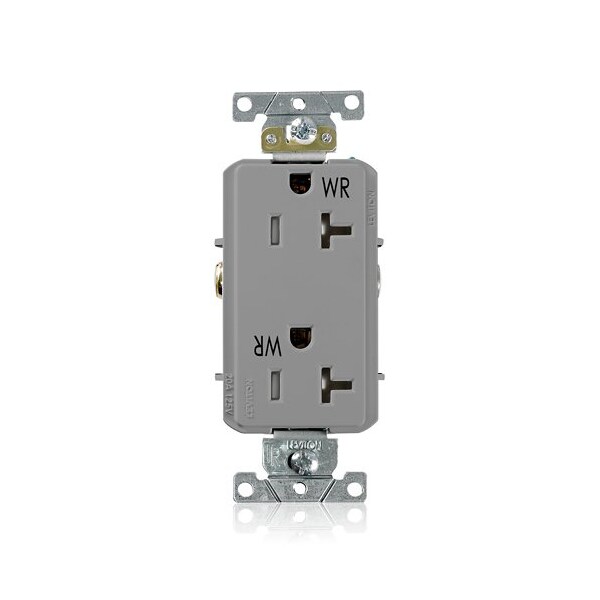

Plugs&Rcptcls, 20A, 125VAC, Gry, PBT, PK1

  • Mfr # WTD20-GY

  • Zoro # G222587478

product price:
$
256.99
/pk of 10, $25.70/ea
Free Shipping & Returns

Key Features

Overall Depth
1.1 in
NEMA Enclosure Rating
Not Rated
Contact Material
Phosphor Bronze
Number of Poles
2
Current Rating
20 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
WTD20-GY
Zoro #
G222587478
UPC #
78477722985
Country of Origin
Mexico
NEMA Enclosure Rating
Not Rated
Contact Material
Phosphor Bronze
Number of Poles
2
Current Rating
20 A
Housing Color
Gray
Minimum Operating Temperature
-40 Degrees C
Cover Type
No Cover
Receptacle Type
Duplex
Number of Outlets
2
Number of Wires
3
Housing Material
PBT Polyester
Horsepower Rating
1 hp
Voltage Rating
125V AC
Standards
CSA, FULS Marking, UL
Phase
Single
Resistance Properties
Tamper Resistant, Weather Resistant
Maximum Operating Temperature
75 Degrees C
UL 94 Flammability Rating
V-0
Wire Connection Type
Screw Terminals
For Environment
Food and Beverage, Oily/Greasy
NEMA Receptacle Configuration
5-20R
Polarized
Yes
Grounding
Grounded
Wiring Method
Back/Side
Flange Type
Non-Flanged
Item
Plugs and Receptacles
Grade
General Use
Number of Gangs
1
Mount Type
Flush
Market
Industrial
IP Rating
Not Rated
GFCI
No
Number of Wall Plates Included
0
AFCI
No
Surge Protection
No
Shrouded
No
Connection Orientation
Straight
Features
Smooth Face

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Gray, Housing Material PBT Polyester, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Weather Resistant
