Shop LEVITON

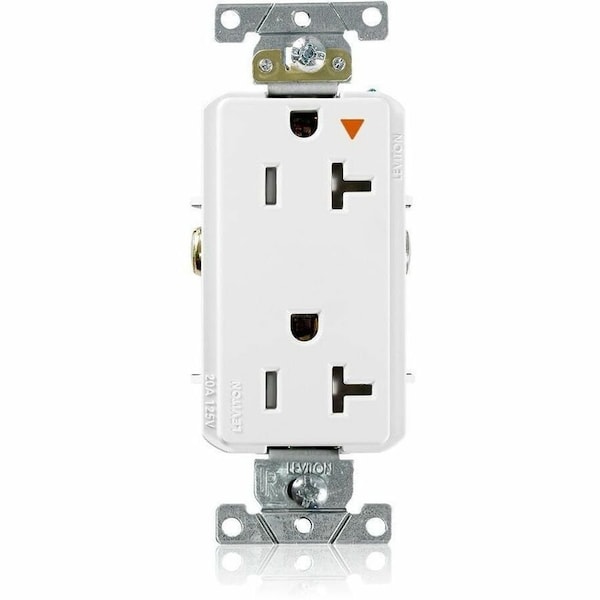

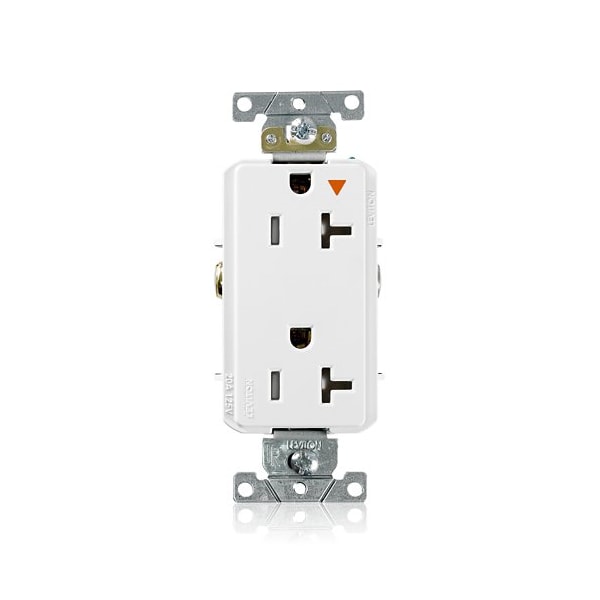

Plugs&Rcptcls, 20A, 125VAC, Wht, PBT, PK1

  • Mfr # T1636-IGW

  • Zoro # G922586726

product price:
$
279.99
/pk 10, $28.00/ea
Free Shipping & Returns

Key Features

For Environment
Food and Beverage, Oily/Greasy
UL 94 Flammability Rating
V-0
Maximum Operating Temperature
75 Degrees C
Receptacle Type
Duplex
Shrouded
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
T1636-IGW
Zoro #
G922586726
UPC #
78477675366
Country of Origin
Mexico

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Face Plate Width
1.6 in
Overall Depth
1.2 in
Face Plate Height
2.6 in

Details

For Environment
Food and Beverage, Oily/Greasy
UL 94 Flammability Rating
V-0
Maximum Operating Temperature
75 Degrees C
Receptacle Type
Duplex
Shrouded
No
Number of Wires
3
Housing Material
PBT Polyester
Wire Connection Type
Screw Terminals
Mount Type
Flush
Wiring Method
Back/Side
Market
Industrial
Minimum Operating Temperature
-40 Degrees C
Phase
Single
Item
Plugs and Receptacles
Cover Type
No Cover
Current Rating
20 A
AFCI
No
Connection Orientation
Straight
Number of Poles
2
Number of Gangs
1
Surge Protection
No
Number of Outlets
2
Standards
CSA, FULS Marking, UL
Grade
General Use
IP Rating
Not Rated
Housing Color
White
GFCI
No
Polarized
Yes
Number of Wall Plates Included
0
Contact Material
Phosphor Bronze
Voltage Rating
125V AC
Grounding
Isolated Ground
NEMA Receptacle Configuration
5-20R
Resistance Properties
Tamper Resistant
Horsepower Rating
1 hp
Features
Smooth Face
NEMA Enclosure Rating
Not Rated
Flange Type
Non-Flanged

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Isolated Ground, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material PBT Polyester, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant
