Shop HUBBELL WIRING DEVICE-KELLEMS

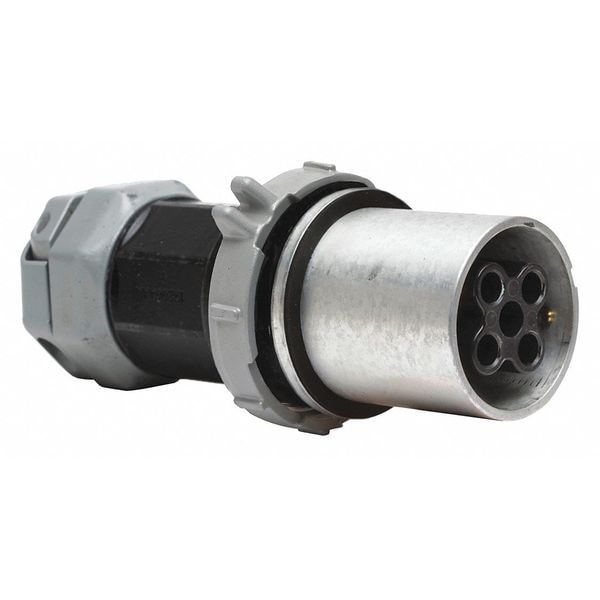

Pin & Sleeve Receptacle, 200 A, 600V AC, Three Phase, 3 Pole, Style 1 Grounding, Gray, NEMA 3, 4, 4X

  • Mfr # HBL4200PS1WR

  • Zoro # G0800068

product price:
$
1,578.99
/ea
Free Shipping & Returns

Key Features

Voltage Rating
600V AC
Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
Not Rated
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL4200PS1WR
Zoro #
G0800068
UPC #
783585012308
Country of Origin
United States

Dimensions

Wire Size
1 to 250 KCMIL
Display Size
Standard Sized

Details

Item
Pin & Sleeve Receptacle
Current Rating
200 A
Voltage Rating
600V AC
Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
Not Rated
NEMA Enclosure Rating
3, 4, 4X
Wire Connection Type
Screw Terminals
Housing Color
Gray
Cap Type
No Cap or Cover
Standards
CSA Certified/CSA Spec. C22.2 No. 159, UL Listed and CSA Certified Type 4X, UL Standard 1682, UL 50, and UL 1010
Resistance Properties
Watertight
Grounding Style
Style 1
Material
Composite
Body Material
Epoxy Painted Aluminum
Operating Temp. Range
-40° C to 75° C
Environmental Conditions
Watertight
Cord Type
All Portable
Application
Metallic with Nylon Shroud
Style
Reversed Service,Style 1 Grounding
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 3,000V AC Electrical - Max. Working Voltage - 600V AC RMS Environmental - Flammability (Enclosure) - UL 94V-0 and CSA C22.2 No. 0.17 Environmental - Moisture Resistance - Type 3, 4, 4X per UL 50E and CSA 22.2, No. 94 Environmental - Operating Temperatures - Max. Continuous 75°C Min. -40°C w/o impact -25° with impact Mechanical - Impact Resistance - Per CSA C22.2, No. 182.1, UL 1682 Mechanical - Product Identification - Identification and ratings are permanently fastened to the device housing Mechanical - Terminal Identification - Terminals identified in accordance with UL 1686(1, 2, 3, Green)
Industry Standard(s)
CSA Certified to CSA Spec. C22.2 No. 159 UL Listed and CSA Certified Type 4X UL Standard 1682,UL 50, and UL 1010
Series
UL 1686 Class 1 Insulgrip®
Material - Mounting Hardware
Cord Mounted
OEM Brand Name
Hubbell Wiring Device-Kellems
Flange Type
Flanged

Description

Grounding Style 1
