  11. Recept, Ivory, 15 A, GFCI, 2P3W, Bk;Sd, 1PK

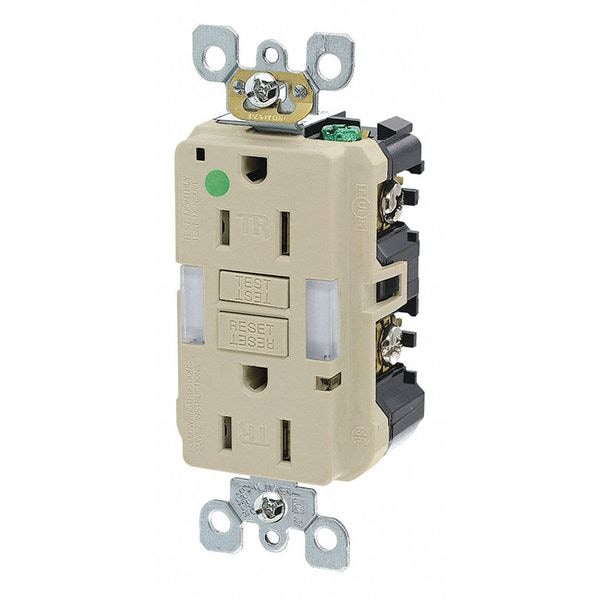

Leviton Recept, Ivory, 15 A, GFCI, 2P3W, Bk;Sd, 1PK GFNL1-HGI - main

Recept, Ivory, 15 A, GFCI, 2P3W, Bk;Sd, 1PK

  • Mfr # GFNL1-HGI

  • Zoro # G004392931

product price: $42.99
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
Phase
Single
GFCI
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFNL1-HGI
Zoro #
G004392931
UPC #
07847772354
Country of Origin
China

Dimensions

Overall Depth
1.4 in
Face Plate Height
2.7 in
Maximum Wire Size
10 AWG
Face Plate Width
1.7 in
Mount Hole Center-to-Center Height
3.8 in
Minimum Wire Size
14 AWG

Details

Item
GFI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
Phase
Single
GFCI
Yes
Grounding
Grounded
Housing Color
Ivory
Number of Outlets
2
Housing Material
Thermoplastic
NEMA Enclosure Rating
Not Rated
NEMA Receptacle Configuration
5-15R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
ANSI C73, CSA C22.2 No. 42 and 144, CSA Certified, Federal Specification W-C-596, NEMA WD-1 and WD-6, NOM-ANCE, UL 498, UL 943, UL Listed
Color - Plugs and Receptacles
Ivory
Surge Suppression
Yes
Power Indicator
Yes
Self-Testing
Yes
Voltage - Plugs and Receptacles
125V
Application Environment
Hospital Grade
Wiring Method - Plugs and Receptacles
Back and Side
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
HP
1 hp
NEMA Configuration
5-15
Wiring Method
Back, Side
Special Features
Custom Designed Lenses with Edge-Mounted LEDs, Dual Lens, Saves Space, Sensor Provides Automatic ON/OFF Illumination
Weather Resistant - Plugs and Receptacles
No
Tamper Resistant
Yes
Item - Plugs and Receptacles
GFCI Receptacle
Amps - Plugs and Receptacles
15 A
Outlet Type - Plugs and Receptacles
Duplex
Horsepower Rating
1 hp
Receptacle Type
Decorator Duplex
Hub Type
Feed Through
Additional Electrical Protections
GFCI & Surge Protection
Grade
Hospital Grade Fed. Spec.
UL 94 Flammability Rating
V-0
Wire Connection Type
Screw Terminals
Includes
Strap Material
Minimum Operating Temperature
-31 Degrees F
Contact Material
Brass
Key Resistance Properties
Tamper Resistant
Mount Type
Flush
Additional Electrical Protection
GFCI, Surge Protection
Wire Connection Types
Screw Terminals
Voltage Rating
125V AC
Maximum Operating Temperature
150.8 Degrees F
Includes Mounting Hardware
Yes
Surge Protection
Yes
Number of Poles & Wires
2 Pole / 3 Wire
Visual Indicator Lights
Power Connected
Resistance Properties
Tamper Resistant
Self Testing
Yes

Description

GFI Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI Yes, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Ivory, Housing Material Thermoplastic, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Tamper Resistant
