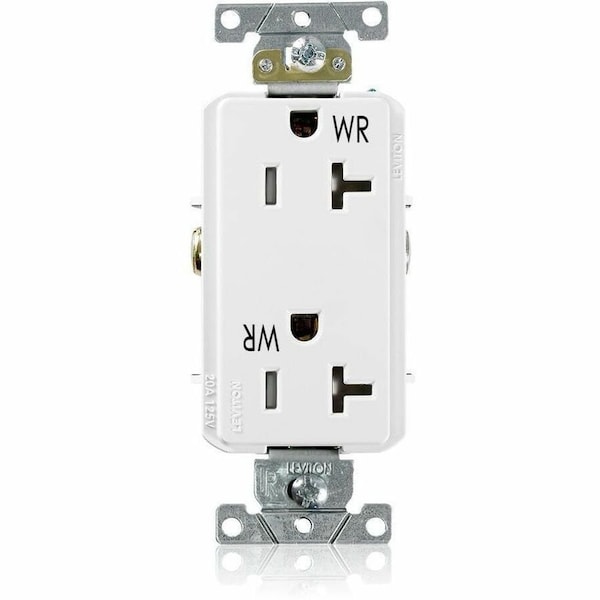

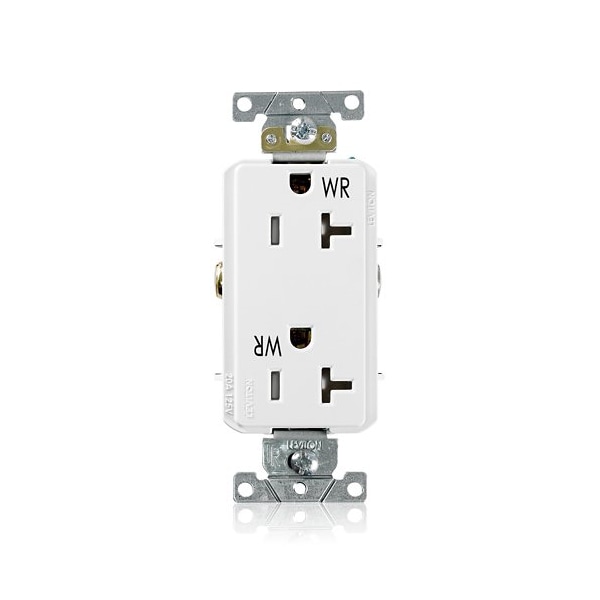

Receptacle Outlet, 20A, White, 125V

Mfr # WTD20-W
Zoro # G422982073

16.99

Key Features

Face Plate Height

2.6 in

Housing Material

PBT Polyester

Minimum Operating Temperature

-40 Degrees C

Number of Poles

Market

Industrial

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: WTD20-W
Zoro #: G422982073
UPC #: 078477675199
Country of Origin: Mexico

Dimensions

Face Plate Height: 2.6 in
Face Plate Width: 1.6 in
Minimum Wire Size: 14 AWG
Maximum Wire Size: 10 AWG
Mount Hole Center-to-Center Height: 3.3 in
Overall Depth: 1.1 in

Details

Housing Material: PBT Polyester
Minimum Operating Temperature: -40 Degrees C
Number of Poles: 2
Market: Industrial
Number of Outlets: 2
Current Rating: 20 A
Item: Decora Plus Duplex Receptacle Outlet
Voltage Rating: 125V AC
Wiring Method: Back/Side
Standards: CSA, FULS Marking, UL
Wire Connection Type: Screw Terminals
Receptacle Type: Duplex
Number of Wires: 3
Contact Material: Phosphor Bronze
Horsepower Rating: 1 hp
Housing Color: White
For Environment: Food and Beverage, Oily/Greasy
Maximum Operating Temperature: 75 Degrees C
Features: Smooth Face
UL 94 Flammability Rating: V-0
Grounding: Grounded
Connection Orientation: Straight
NEMA Receptacle Configuration: 5-20R
Resistance Properties: Tamper Resistant, Weather Resistant

Description

Decora Plus Duplex Receptacle Outlet, Connection Orientation Straight, Current Rating 20 A, Grounding Grounded, Housing Color White, Housing Material PBT Polyester, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Weather Resistant, Standards CSA, FULS Marking, UL, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back/Side, Horsepower Rating 1 hp, UL 94 Flammability Rating V-0
