  11. Straight Blade Plug, 10-50P, 30/50 A, 125/250V AC, 3 Pole, Screw Terminals, Non-Grounded

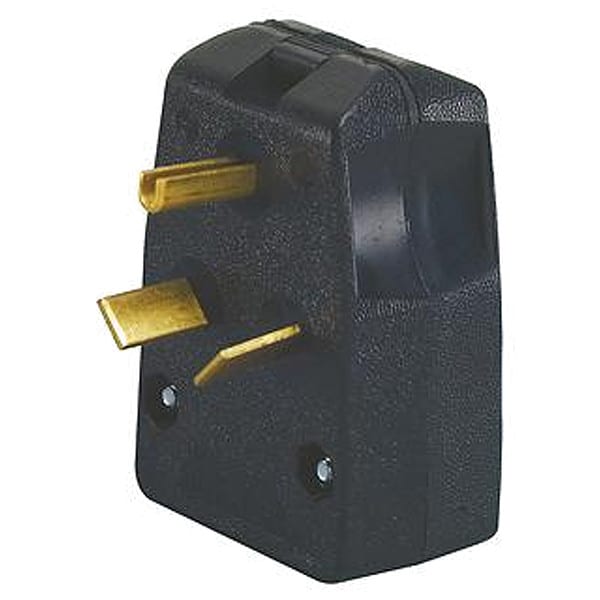

Leviton Straight Blade Plug, 10-50P, 30/50 A, 125/250V AC, 3 Pole, Screw Terminals, Non-Grounded 287-E - main

Straight Blade Plug, 10-50P, 30/50 A, 125/250V AC, 3 Pole, Screw Terminals, Non-Grounded

  • Mfr # 287-E

  • Zoro # G004393358

product price: $15.89
/ea

Key Features

NEMA Plug Configuration
10-50P
Current Rating
30/50 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
287-E
Zoro #
G004393358
UPC #
07847764493
Country of Origin
Mexico

Dimensions

For Maximum Cable Diameter
1.005 in
For Minimum Cable Diameter
0.687 in
Cord Size
0.687 in to 10.05 in
Maximum Wire Size
6 AWG
Overall Length
3.49 in
Minimum Wire Size
10 AWG

Details

Item
Straight Blade Plug
NEMA Plug Configuration
10-50P
Current Rating
30/50 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Angled
Grounding
Non-Grounded
Housing Color
Black
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2, UL 498
Resistance Properties
Chemical Resistant, Crack Resistant, Moisture Resistant, Shatter Resistant
Material
Thermoplastic
NEMA Plug Configuration - Plugs and Receptacles
10-30P, 10-50P
Number of Wires
3
Grade - Plugs and Receptacles
Commercial
Special Features
Abuse-Resistant, Chemical Resistant, Moisture Resistant
Grade
Commercial
Market
Commercial
Housing Material
Thermoplastic
Minimum Operating Temperature
-40 Degrees F
UL 94 Flammability Rating
V-2
For Location
Indoor, Outdoor
Polarized
No
Horsepower Rating
2 hp
Blade Material
Brass
Maximum Operating Temperature
140 Degrees F
Operating Temp.
-40°C to 60°C
Temp. Rise
Max 30C after 50 cycles OL at 150 percent rated current
Assembly Screws
Steel, Zinc Plated
Wire Gauge
10-6 AWG
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Body Material
Thermoplastic
Flammability
Rated V-2 per UL 94
Dielectric Strength
Withstands 2000V per UL498

Description

Plug, Connection Orientation Angled, Current Rating 30 A, 50 A, Grounding Non-Grounded, Horsepower Rating 2 hp, Housing Color Black, IP Rating Not Rated, NEMA Plug Configuration 10-30P, 10-50P, Number of Blades 3, Number of Poles 3, Phase Single, Polarized No, Resistance Properties Shatter and Crack Resistant, Chemical Resistant, Moisture Resistant, UL 94 Flammability Rating V-2, Voltage Rating 125/250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard
