Shop LEVITON

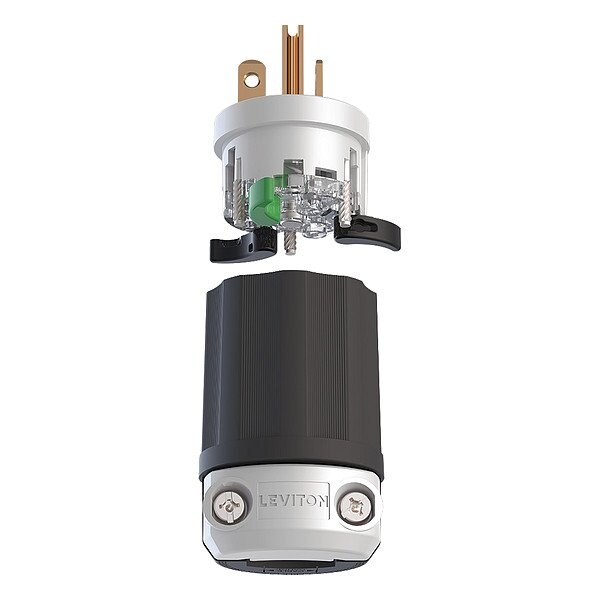

Straight Blade Plug, 20 A, Black; White

  • Mfr # 5466E

  • Zoro # G522729516

product price:  $22.15
/ea

Key Features

Grounding
Grounded
For Maximum Cable Diameter
0.655 in
Market
Industrial
Minimum Operating Temperature
-40 Degrees F
IP Rating
Not Rated
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5466E
Zoro #
G522729516
UPC #
-
Country of Origin
Mexico

Dimensions

For Maximum Cable Diameter
0.655 in
For Minimum Cable Diameter
0.25 in
Overall Length
3.41 in
Wire Rope Length
3.41 in

Details

Grounding
Grounded
Voltage Rating
250V AC
Market
Industrial
Minimum Operating Temperature
-40 Degrees F
IP Rating
Not Rated
Number of Poles
3
NEMA Plug Configuration
6-20P
UL 94 Flammability Rating
HB
Maximum Operating Temperature
60 Degrees C
Housing Material
Nylon
Standards
ANSI C-73, CSA C22.2 No. 42, CSA No. File E13393, NEMA WD-6, UL 498, UL Fed Spec W-C-596, UL File No. E13393
Wire Connection Type
Screw Terminals
Item
Straight Blade Plug
Phase
Single
Shrouded
No
Blade Material
Phosphor Bronze
Series
Insulgrip
For Environment
Dry
Horsepower Rating
1/2 hp
NEMA Enclosure Rating
Not Rated
Power Indicating Light
No
Housing Color
Black, White
Number of Blades
3
Connection Orientation
Straight
Current Rating
20 A
Resistance Properties
Shatter and Crack Resistant

Description

Straight Blade Plug, Connection Orientation Straight, Current Rating 20 A, Grounding Grounded, Horsepower Rating 1/2 hp, Housing Color Black, White, IP Rating Not Rated, NEMA Plug Configuration 6-20P, Number of Blades 3, Number of Poles 3, Phase Single, Resistance Properties Shatter and Crack Resistant, UL 94 Flammability Rating HB, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, For Maximum Cable Diameter 0.655 in, For Minimum Cable Diameter 0.25 in
