Shop LEVITON

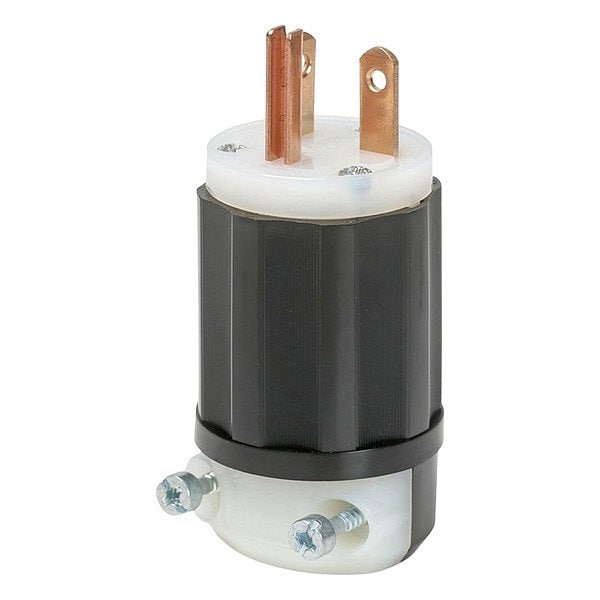

Straight Blade Plug, 20 A, Black; White

  • Mfr # 5366E

  • Zoro # G522729202

product price:  $20.75
/ea

Key Features

NEMA Plug Configuration
5-20P
IP Rating
Not Rated
Wire Connection Type
Screw Terminals
Grounding
Grounded
Market
Industrial
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5366E
Zoro #
G522729202
UPC #
-
Country of Origin
Mexico

Dimensions

For Maximum Cable Diameter
0.655 in
For Minimum Cable Diameter
0.25 in
Overall Length
3.41 in
Wire Rope Length
3.41 in

Details

NEMA Plug Configuration
5-20P
Item
Straight Blade Plug
IP Rating
Not Rated
Wire Connection Type
Screw Terminals
Grounding
Grounded
Market
Industrial
Standards
ANSI C-73, CSA C22.2 No. 42, CSA No. File E13393, NEMA WD-6, UL 498, UL Fed Spec W-C-596, UL File No. E13393
Connection Orientation
Straight
For Environment
Dry
Voltage Rating
125V AC
Resistance Properties
Shatter and Crack Resistant
UL 94 Flammability Rating
HB
Blade Material
Phosphor Bronze
Phase
Single
Housing Material
Nylon
Horsepower Rating
1/2 hp
NEMA Enclosure Rating
Not Rated
Power Indicating Light
No
Number of Blades
3
Series
Insulgrip
Maximum Operating Temperature
60 Degrees C
Minimum Operating Temperature
-40 Degrees F
Number of Poles
3
Housing Color
Black, White
Current Rating
20 A
Shrouded
No

Description

Straight Blade Plug, Connection Orientation Straight, Current Rating 20 A, Grounding Grounded, Horsepower Rating 1/2 hp, Housing Color Black, White, IP Rating Not Rated, NEMA Plug Configuration 5-20P, Number of Blades 3, Number of Poles 3, Phase Single, Resistance Properties Shatter and Crack Resistant, UL 94 Flammability Rating HB, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, For Maximum Cable Diameter 0.655 in, For Minimum Cable Diameter 0.25 in
