Shop LEVITON

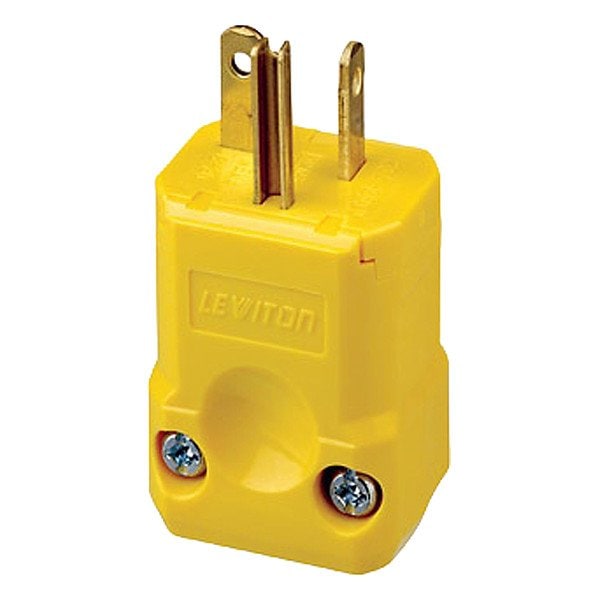

Straight Blade Plug, 20 A, Yellow

  • Mfr # 5456-VY

  • Zoro # G122586953

product price:
$
24.79
/ea

Key Features

Minimum Operating Temperature
-40 Degrees F
NEMA Enclosure Rating
Not Rated
For Minimum Cable Diameter
0.25 in
UL 94 Flammability Rating
V-2
For Environment
Dry
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
5456-VY
Zoro #
G122586953
UPC #
78477055113
Country of Origin
Mexico
Current Rating
20 A
Minimum Operating Temperature
-40 Degrees F
NEMA Enclosure Rating
Not Rated
UL 94 Flammability Rating
V-2
For Environment
Dry
NEMA Plug Configuration
6-20P
Housing Material
Nylon
Horsepower Rating
1/2 hp
Resistance Properties
Shatter and Crack Resistant
Market
Industrial
Connection Orientation
Straight
Grounding
Grounded
Shrouded
No
Number of Poles
2
Power Indicating Light
No
Phase
Single
Voltage Rating
250V AC
Maximum Operating Temperature
60 Degrees C
Number of Blades
3
Standards
ANSI C-73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, NOM 057, UL 498 File E13399
Blade Material
Brass
Wire Connection Type
Screw Terminals
IP Rating
Not Rated
Series
Valise
Item
Straight Blade Plug
Housing Color
Yellow
Grade
General Use

Description

Straight Blade Plug, Connection Orientation Straight, Current Rating 20 A, Grounding Grounded, Horsepower Rating 1/2 hp, Housing Color Yellow, IP Rating Not Rated, NEMA Plug Configuration 6-20P, Number of Blades 3, Number of Poles 2, Phase Single, Resistance Properties Shatter and Crack Resistant, UL 94 Flammability Rating V-2, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Wiring Style Hinged, For Maximum Cable Diameter 0.655 in, For Minimum Cable Diameter 0.25 in
