  11. Straight Blade Receptacle, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

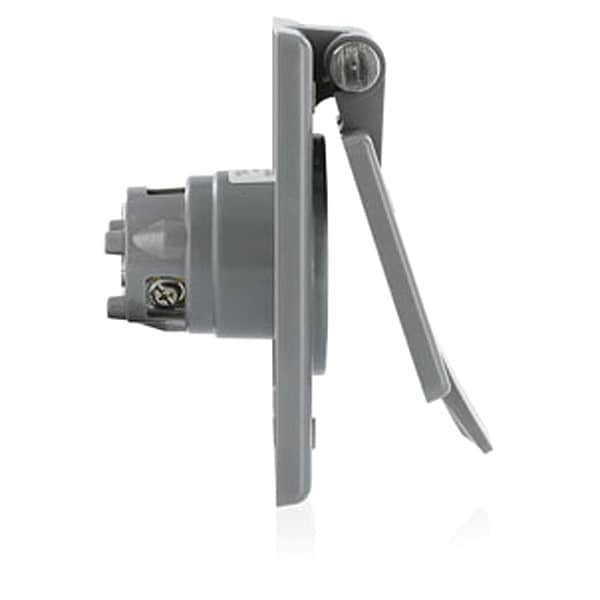

Leviton Straight Blade Receptacle, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded 15378-CWP - main

Straight Blade Receptacle, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # 15378-CWP

  • Zoro # G604393314

product price: $46.59
/ea

Key Features

Receptacle Type
Duplex
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
15378-CWP
Zoro #
G604393314
UPC #
07847704614
Country of Origin
United States

Dimensions

Face Plate Width
2.84 in
Overall Depth
2.55 in
Maximum Wire Size
10 AWG
Face Diameter
1.69 in
Mount Hole Center-to-Center Height
3.3 in
Mount Hole Center-to-Center Width
1.9 in
Minimum Wire Size
18 AWG
Face Plate Height
4.56 in
Cord Size
18 to 10 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back
Grounding
Grounded
Housing Color
Gray
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42 File LR-16347, NEMA WD-6, RoHS Compliant, UL 498 File E13393
Resistance Properties
Corrosion Resistant, Impact Resistant, Weather Resistant
Flange Type
Flanged
Application Environment
Industrial
Sub-Category
Flanged Receptacles
HP
1 hp
NEMA Receptacle Configuration - Plugs and Receptacles
5-20P
Corrosion Resistant
Yes
Outlet Type - Plugs and Receptacles
Inlet
Weather Resistant - Plugs and Receptacles
Yes
Wiring Method - Plugs and Receptacles
Back
Material
Nylon (Body and Face)
Cover Type
Flip-Up Cover
NEMA Enclosure Rating
3R
For Environment
Dry
Grade
General Use
Flange Shape
Rectangular
Polarized
Yes
Includes Mounting Hardware
Yes
Minimum Operating Temperature
-40 Degrees F
Includes
Mounting Hardware
Market
Industrial
For Location
Indoor, Outdoor
UL 94 Flammability Rating
V-2
Horsepower Rating
1 hp
Housing Material
Nylon (Body Material), Nylon (Face Material)
NEMA Plug Configuration
5-20P
Connection Orientation
Straight
Number of Blades
3
Shrouded
Yes
Features
Glass-Filled Thermoplastic Cover and Plate Provides Outstanding Impact Resistance and Durability, Stainless Steel External Hardware Resists Corrosive Effects of Moisture as Dual Gaskets, One Under Plate and One Under Lid, Provide for a Superior Weather-Resistant Fit
Maximum Operating Temperature
140 Degrees F
Flammability
UL 94 V2
Dielectric Strength
1500V
Contact Material
Brass
Temp. Rise
30°C
Body Material
Nylon
Operating Temp.
-40 to 60°C

Description

Flanged Receptacle, Cover Type Flip-Up Cover, Current Rating 20 A, Flange Shape Rectangular, Grounding Grounded, Housing Color Gray, IP Rating Not Rated, NEMA Plug Configuration 5-20P, Number of Blades 3, Number of Poles 2, Phase Single, Voltage Rating 125V AC, Connection Orientation Straight, Face Diameter 1.69 in, Flange Type Flanged, Grade General Use, Horsepower Rating 1 hp, Includes Mounting Hardware Yes, Market Industrial, Shrouded Yes, Mount Hole Center-to-Center Height 3.3 in
